Dwyer Series MCS Miniature Current Switch

$ 18.00

Clear selection

Product Description

Low Cost, Solid or No Core, LED Confirmation, Adjustable Set Point

The Series MCS Miniature Current Switches are ideal for monitoring the current usage in fuse boxes and small control panels. Both models have adjustable set points and LED indication to show there is power to the unit and when the switch activates. Set points can be adjusted using the potentiometer next to the LED’s.

Due to the size of the switch, it is only offered in solid core and no core versions. The no core version has terminal blocks which can accept currents up to 1A directly into the unit.

Product Applications

  • Fan/Pump Status

Models

Model Description

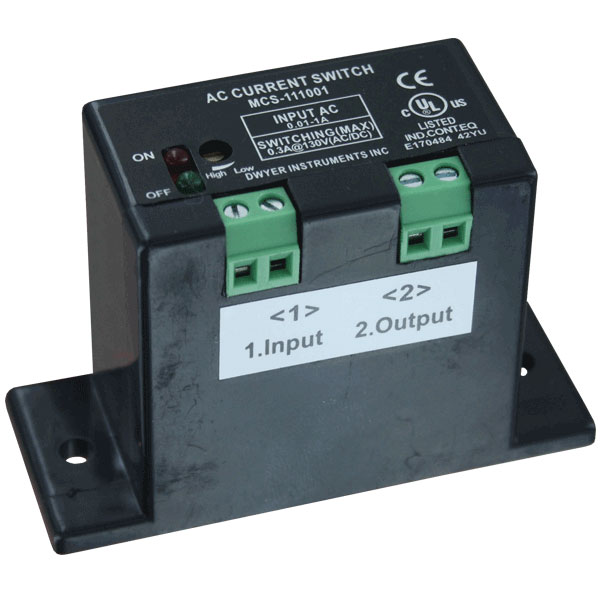

MCS-111001 No Core Terminal Connect Mini Current Switch.

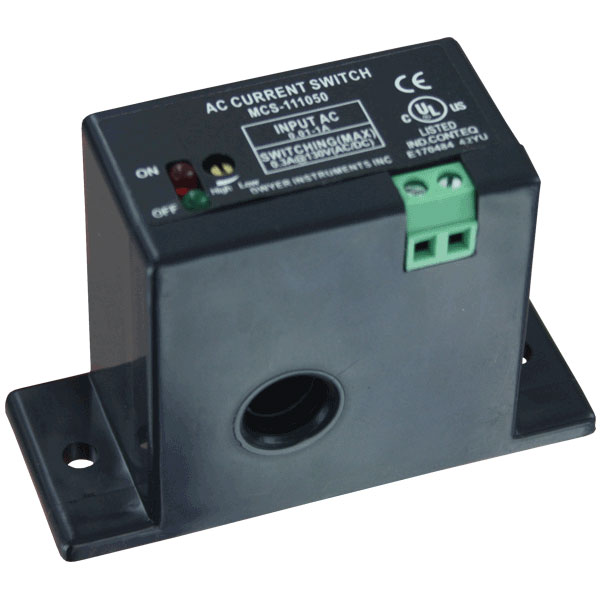

MCS-111050 Solid Core Mini Current Switch.

Specifications

Amperage Range:
MCS-111050: 0.5 to 50 A AC continuous; MCS-111001: 0.01 to 1 A AC continuous.
Output Rating:
Isolated, N.O. 0.3 A @ 130 V DC/AC.
Power Requirements:
None, self-powered.
Hysteresis:
1%.
Response Time:
<200 ms.
Temperature Limits:
32 to 122°F (0 to 50°C).
Humidity Limits:
10 to 95% RH (non-condensing).
Enclosure Rating:
UL 94V-0 flammability rated ABS, insulation class
600 V.
Weight:
0.5 oz (14.5 g).
Agency Approvals:
CE, RoHS, cUL, UL.
