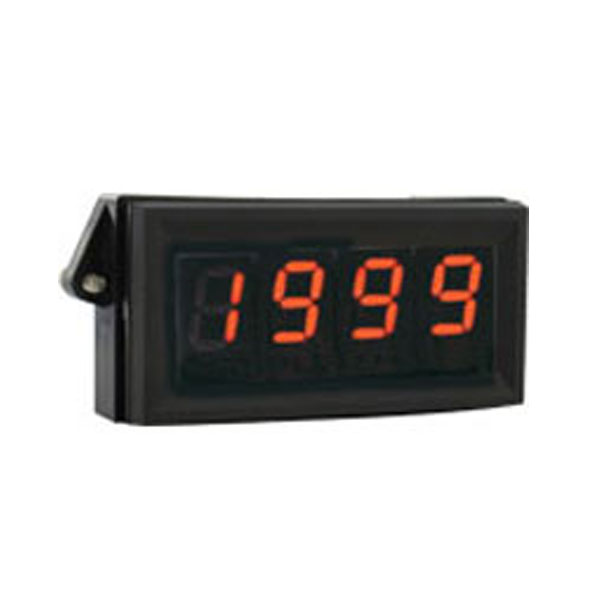

Dwyer Series DPMA LCD Digital Process Meter

$ 93.00

Clear selection

Accessories

SKU: N/A Categories: ,

Product Description

1/8 DIN, Loop Powered, Large 3-1/2 Digit Display

THE SERIES DPMA ADJUSTABLE LCD DIGITAL PANEL METER offers a 3-1/2 digit, high contrast display for easy viewing in a standard 1/8 DIN package. This series can accept 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC inputs with a wide bipolar span and zero adjustment. A 24 VDC power supply is required to illuminate the colored segments.

Product Applications

  • Display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters.

Models

Model Description
DPMA-401 LCD Digital panel meter, loop powered 4 to 20 mA, amber segments.
DPMA-401P LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, amber segments.
DPMA-402 LCD Digital panel meter, loop powered 4 to 20 mA, red segments.
DPMA-402P LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, red segments.
DPMA-404 LCD Digital panel meter, loop powered 4 to 20 mA, green segments.
DPMA-404P LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, green segments.
DPMA-501 LCD Digital panel meter, voltage powered 12 VDC/24 VDC, amber segments.
DPMA-501P LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, amber segments.
DPMA-502 LCD Digital panel meter, voltage powered 12 VDC/24 VDC, red segments.
DPMA-502P LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, red segments.
DPMA-504 LCD Digital panel meter, voltage powered 12 VDC/24 VDC, green segments.
DPMA-504P LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, green segments.

Specifications

Input:
DPMA-4XX(P): 4 to 20 mA;
DPMA-5XX(P): 0 to 200 mVDC, 0 to 5
VDC or 0 to 10 VDC.
Input Impedance:
DPMA-4XX(P):
300Ω nominal; DPMA-5XX(P): 390KΩ
nominal.
Accuracy:
±(0.05% FS + 1 count).
Power Supply:
DPMA-4XX(P):
Powered by control loop; DPMA-
5XX(P): 12 VDC or 24 VDC.
Backlight Power Supply:
24 VDC @
35 mA typical.
Span and Zero:
Adjustable. (±1999 counts).
Display:
3-1/2 digits, 7 segments, 1″ (25.4 mm) H.
Decimal Points:
3-position, user selectable.
Engineering Units:
DPMA-XXX: °F,
°C, %, psi; DPMA-XXXP: V, A, KW, PF.
Polarity:
Automatic, “-” displayed.
Operating Temperature:
32 to 122°F
(0 to 50°C).
Storage Temperature:
-4 to 158°F
(-20 to 70°C).
Mounting:
Snap-in panel mount or clamp (gasket included).
Connection:
Screw terminals.
Conversion Rate:
3 per second.
Warm-Up:
10 minutes typical.
Weight:
4 oz (113.4 g).
Agency Approvals:
RoHS.

Features

  • 1/8″ DIN Panel Size
  • 3-1/2 Digit Display with 1″ Segments
  • Colored segments available in black, red, amber, green, or blue
  • Jumper selectable engineering units and decimal point positions

Literature

Manuals

Catalog Pages

Series DPMA Catalog Page

Approvals

RoHS Certificate of Compliance

Drawings

Accessories

Model Number Description
DPM-12P Regulated 120 VAC to 12 VDC power supply.
Regulated 120 VAC to 24 VDC power supply. DPM-24P Regulated 120 VAC to 24 VDC power supply.

FAQ

Question
The DPMA-502 panel meter, what is the environmental rating? NEMA 1?
Answer
The Series DPMA doesn’t have a NEMA rating.
