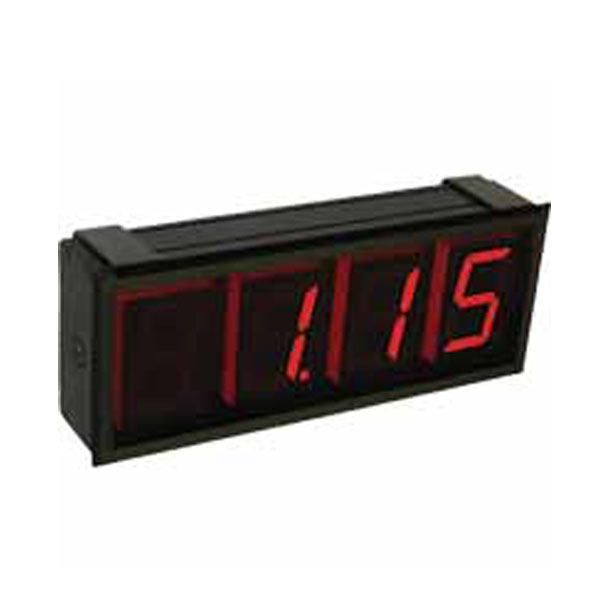

Dwyer Series DPMX Extra Large Digital Panel Meter

Product Description

3-1/2 Digit LED Display, 2.3″ Segment Height, Process Inputs

THE SERIES DPMX EXTRA LARGE DIGITAL PANEL METER can be easily viewed from across a room or in dark areas. The 2.3″ LED segments are available in red, green, or blue. These panel meters come equipped with a universal power supply and user selectable process inputs to fit most applications.

Product Applications

• Display process values from various transmitters

Models

Specifications

Inputs:

Set Voltage: ±200 mVDC, ±2 VDC, ±20 VDC; Adjustable Voltage: 200 mVDC, 5 VDC, 10 VDC; Adjustable Current: 0(4) to 20 mA DC.

Input Impedance:

Set Voltage: >1 MΩ (>10 MΩ on 200 mV range); Adjustable Voltage: 392 kΩ; Adjustable Current: 300Ω nominal.

Accuracy:

±(1% F.S. + 1 count).

Power Supply:

90 to 250 VAC @ 12 VA or 10.5 to 30 VAC/DC @ 6 VA (depending on model).

Display:

3-1/2 digits, 2.3″ height, 7 segment LED

Sampling Rate:

3 readings per second.

Operating Temperature:

14 to 122°F ( -10 to 50°C).

Storage Range:

-40 to 167°F (-40 to 75°C).

Warm Up:

10 minutes.

Mounting:

180° gimbal mounting with 30° stops or bezel mount.

Features

• Large 10.6″ (269.2 mm) x 4.2″ (105.7 mm) backlit display
• Protective metal casing with adjustable mounting bracket
