Series DPMW LCD Digital Panel Meter

Product Description

3-1/2 Digits, Window Mount

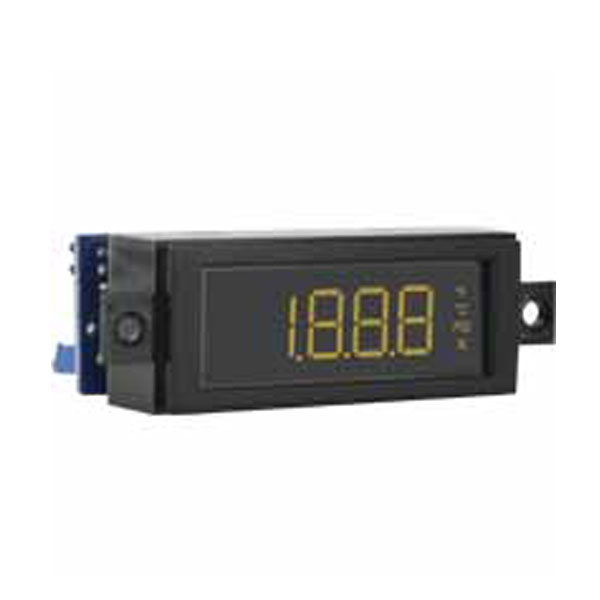

THE SERIES DPMW LCD DIGITAL PANEL METER is designed with a 3-1/2 digit, high contrast LCD. It can be quickly installed in a 2.31″ (58.4 mm) x 0.91″ (22.9 mm) panel cutout. This unit accepts a 4 to 20 mA input signal from a pressure, level, flow, or temperature transmitter and requires a 24 VDC power supply to illuminate the colored segments.

Product Applications

• Display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters

Models

Specifications

Inputs:

4-20 mA DC.

Input Impedance:

300Ω nominal.

Accuracy:

±(0.1% FS + 2 count).

Power Supply:

Powered by control
loop.

Backlight Power Supply:

24 VDC @ 35 mA typical.

Span and Zero:

Adjustable. (±1999).

Display:

3-1/2 digits, 7 segments, 0.45″ (11.4 mm) H.

Decimal Points:

3-position, user selectable.

Engineering Units:

DPMW-XXX: °F, °C, %, psi; DPMW-XXXP: V, A, KW, PF.

Polarity:

Automatic, “-” displayed.

Operating Temperature:

32 to 122°F (0 to 50°C).

Storage Temperature:

-4 to 158°F (-20 to 70°C).

Mounting:

Window mount.

Connection:

Screw terminals.

Conversion Rate:

3 per second.

Warm-Up:

10 minutes typical.

Weight:

2 oz (56.7 g).

Agency Approvals:

RoHS.

Features

• Window mounts eliminate bezel border
• 3-1/2 Digit display with 0.45″ segments
• Colored segments available in black, red, amber, green, or blue
• Jumper selectable engineering units and decimal point positions

Literature

Manuals

• Instruction Manual
  • Window mounts eliminate bezel border
  • 3-1/2 Digit display with 0.45″ segments
  • Colored segments available in black, red, amber, green, or blue
  • Jumper selectable engineering units and decimal point positions

Catalog Pages

Series DPMW Catalog Page

Approvals

RoHS Certificate of Compliance

Drawings

• CAD Drawing in format .DWG
• Adobe Reader in format .PDF

Accessories

	Model Number	Description

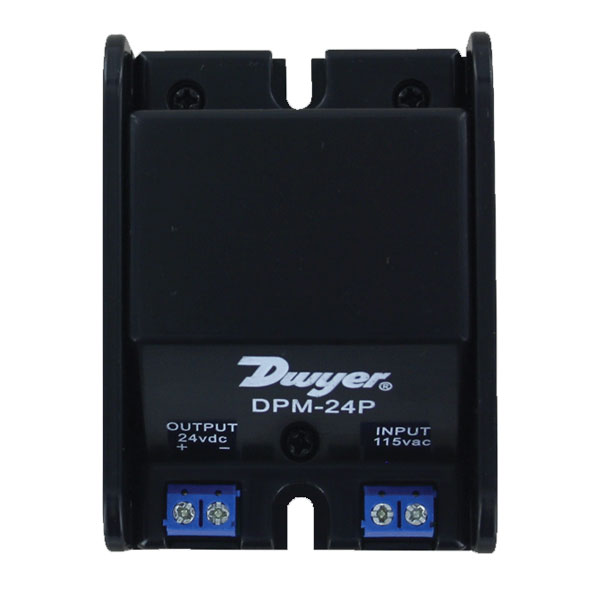

	DPM-24P	Regulated 120 VAC to 24 VDC power supply.
