Dwyer Series CCT60/70 True RMS Current Transformer

$ 36.00–$ 45.00

Clear selection
SKU: N/A Categories: ,

Product Description

Solid or Split Core, Field Selectable Range

The Series CCT60/70 True RMS Current Transformers are a low cost alternative for providing true RMS outputs on distorted AC waveforms. True RMS outputs are ideal for nonlinear loads or noisy circuits. For existing installations, split core models can be installed without disconnecting cables. Each model offers three jumper selectable ranges to reduce the risk of ordering the wrong model.

Models

Model Description

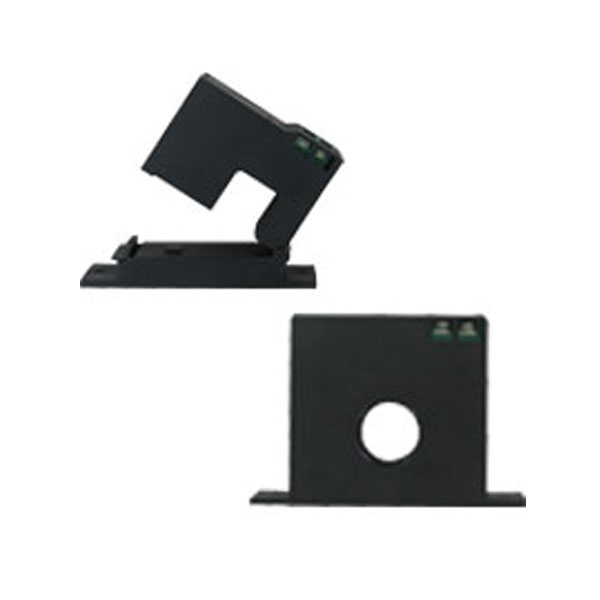

CCT60-100 Current transformer, 10/20/50 A input, 4-20 RMS output, split core.
CCT60-200 Current transformer, 10/20/50 A input, 4-20 RMS output, solid core.
CCT70-100 Current transformer, 100/150/200 A input, 4-20 RMS output, split core.
CCT70-200 Current transformer, 100/150/200 A input, 4-20 RMS output, solid core.

Specifications

Amperage Range:
Up to 200 A (depending on model).
Output:
4 to 20 mA, true RMS.
Power Requirements:
24 VDC nominal.
Accuracy:
1%.
Temperature Limits:
-22 to 158ºF (-30 to 70ºC).
Humidity Limits:
0 to 95% (non-condensing).
Response Time:
250 ms to 90%.
Isolation Voltage:
2000 V.
Frequency:
10 to 400 Hz.
Enclosure Rating:
UL, 94 V-O flammability rated, ABS plastic housing.
Approvals:
CE, cUL, UL.
