Dwyer Series 782 DPDT Ice Cube Relays

Product Description

15 Amp, DPDT Operation

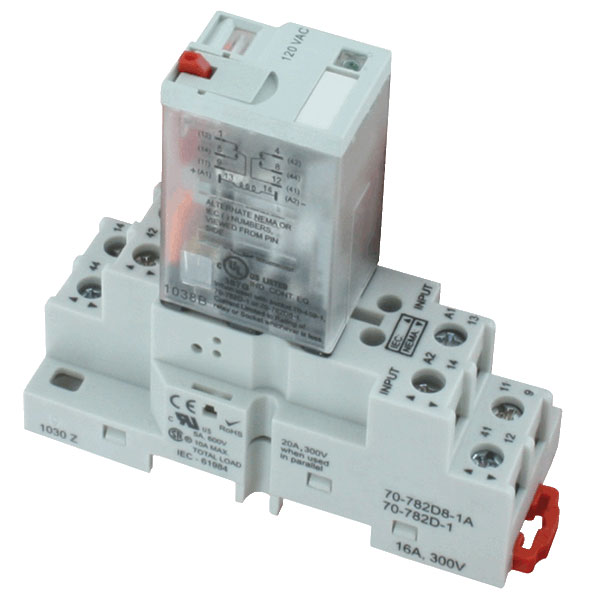

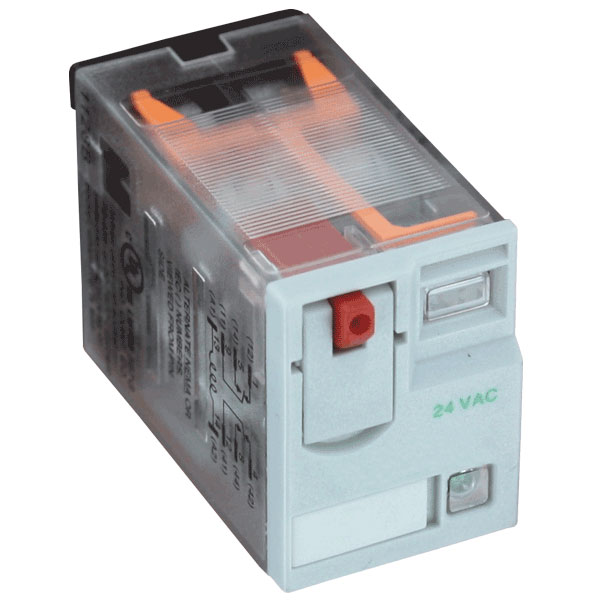

The Series 782 Electromechanical Ice Cube Relay is a full-featured DPDT relay that can be used to switch two different devices with a single trigger. With a rating of 15 amps, the relay can be used to stop and start small fans, motors, and pumps directly. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color-coded. For testing the operation, a removable lock-down lever holds the test button in place. The clear plastic housing gives a view of the contacts, and there is a removable I.D. tag for labeling the circuit.

Models

Specifications

Operating and Load Voltage Range:

24 to 240 VAC; 24 VDC.

Electrical Connection:

Silver alloy plug-in contacts.

Switching Operation:

DPDT.

Electrical Rating:

15 A @ 120 VAC 50/60Hz; 12 A @ 277 VAC 50/60 Hz or 28 VDC (UL);
10 A @ 277 VAC 50/60 Hz (CSA).

Temperature Limits:

Storage: -40 to 185°F (-40 to 85°C);
Operation: -40 to 131°F (-40 to 55°C).

Power Consumption:

1.2 VA; 0.9W.

Cycle Life:

100,000 cycles (electrical); 10,000,000 cycles (mechanical).

Housing:

Plastic polycarbonate.

Weight:

1.3 oz (36 g).

Agency Approvals:

CE, CSA, RoHS, cUL, UL, cUR, UR.

Literature

Catalog Pages

Series 782 Catalog Page

Approvals

• CE Approval (Relays)
• CE Approval (Sockets)
• RoHS Approval (Relays)
• RoHS Approval (Sockets)
• UL Approval_US
• UL Approval_US (components)
• UL Approval_CA
• UL Approval_CA (components)
• CSA Approval

Drawings

• Adobe Reader in format .PDF
• CAD Drawing in format .DWG

Accessories

	Model Number	Description

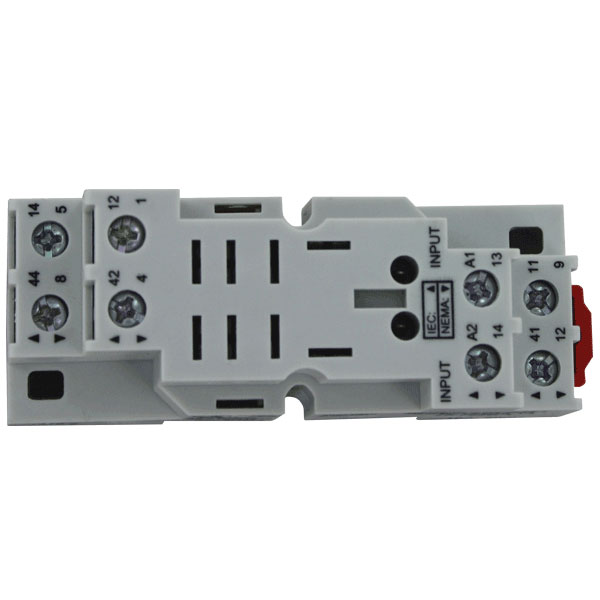

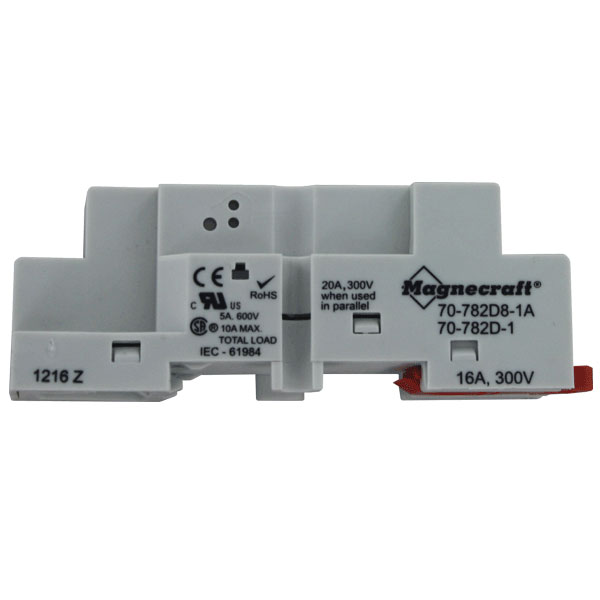

	70-782D8-1A	Socket for 782 Series relay
