Dwyer Series WD3 Water Leak Detector

$ 22.50$ 35.00

Clear selection

Accessory

SKU: N/A Categories: ,

Product Description

Battery or External Powered, SPST or DPDT Relays

The Series WD3 Water Leak Detector protects equipment from water damage by detecting the presence of water in drip pans in air handler units, under raised floors in data centers, or on floors around sump pumps and drains. Water is detected once it reaches a level that bridges the two conductive strips on the bottom of the housing. Depending on the model ordered, audible and visual alerts provide local indication of the alarm condition and an internal switch will give remote indication or control to prevent further build up of water.

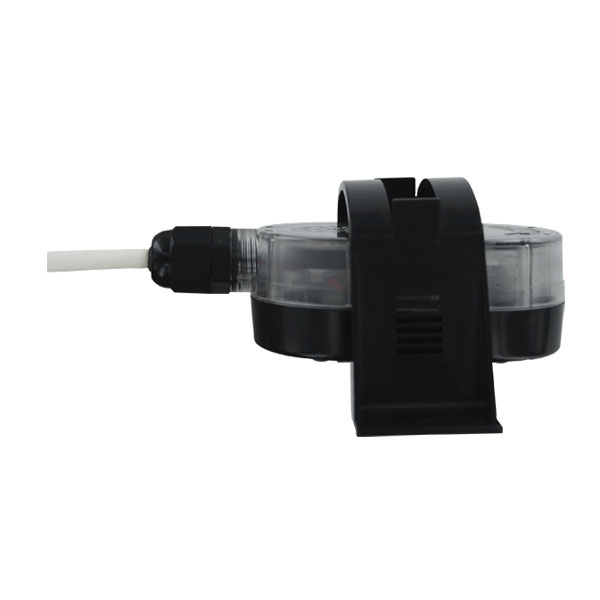

For applications where power is not available, the Model WD3-BP-D1-A is battery powered. Otherwise, either AC or DC supply voltages can be used to power the water detector. The sensing height can be adjusted to as low as 1/32″ using the included adjustable mounting bracket. The mounting bracket can attach to any flat surface by either using the attached adhesive strips or mounting screws.

Product Applications

  • AHU drip pans
  • Radiant floors

Models

Model Description

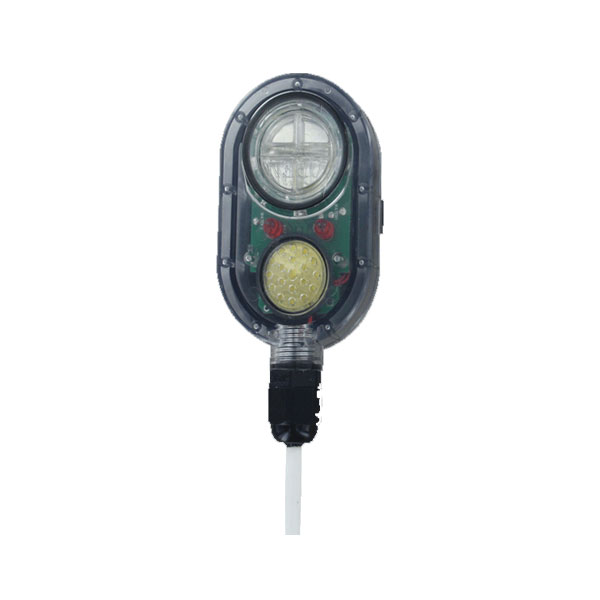

WD3-BP-D1-A Battery powered water leak detector, SPST NO SSR, with audible alarm, adjustable mounting bracket included.

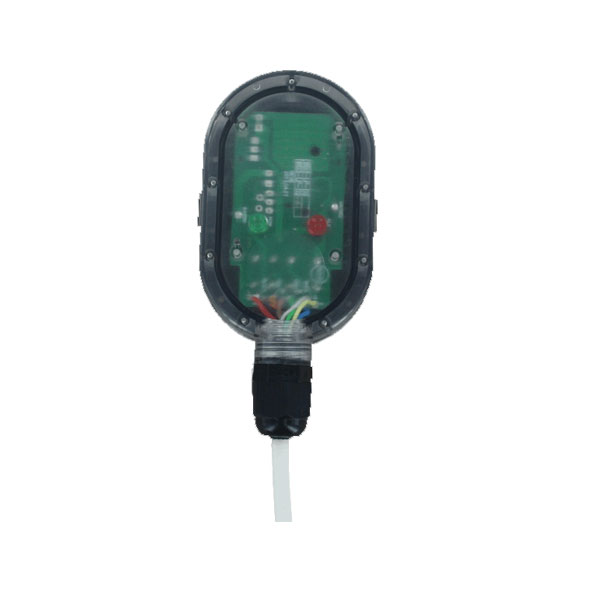

WD3-LP-D2 Line powered water leak detector with DPDT relay, 11 to 27 VAC/DC, no audible alarm, adjustable mounting bracket included.
WD3-LP-D2-A Line powered water leak detector with DPDT relay, 11 to 27 VAC/DC, with audible alarm, adjustable mounting bracket included.

Specifications

Service:
Water or conductive fluids.
Minimum Sensing Gap:
1/32″.
Switch Type:
Battery Powered Models: SPST NO SSR; External Powered
Models: DPDT relay.
Electrical Ratings:
Battery Powered Model: Pilot duty rating 250 mA @ 24 VDC;
External Powered Models: 1A @ 24 VAC/DC.
Audible Alarm:
At least 85 dB @ 1 foot distance (depends on model).
Visual Alarm:
Red LED for water level; Yellow LED for low battery (battery
powered models only); Green LED for power condition (external powered models
only).
Temperature Limits:
32 to 122°F (0 to 50°C).
Power Requirements::
Battery Powered Model: 3V CR2450
lithium metal battery, installed
functional, user replaceable;
External Powered Models: 24 VAC
(±10%) or 11 to 27 VDC.
Power Consumption:
Battery Powered Model: 0.9 mA steady state / 3.0 mA during alarm condition; External Powered Models: 30 mA steady state / 85 mA during alarm condition.
Battery Life:
5 years steady state / 48 hours during alarm condition.
Electrical Connections:
4.9′ (1.5 m), 22 AWG, PVC, UL plenum rated cable.
Enclosure Material:
ABS and polycarbonate with flammability classification UL 94 V-0.
Enclosure Rating:
Audible Alarm Models: Water-tight up to 3/4 of the body height;
Non-Audible Alarm Models: NEMA 6P (IP 68) submersible.
Weight:
4.85 oz (137.5 g).
Agency Approvals:
CE, RoHS.

Literature

Manuals

Instruction Manual

Catalog Pages

Series WD3 Catalog Page

Approvals

Drawings

Accessories

Model Number Description

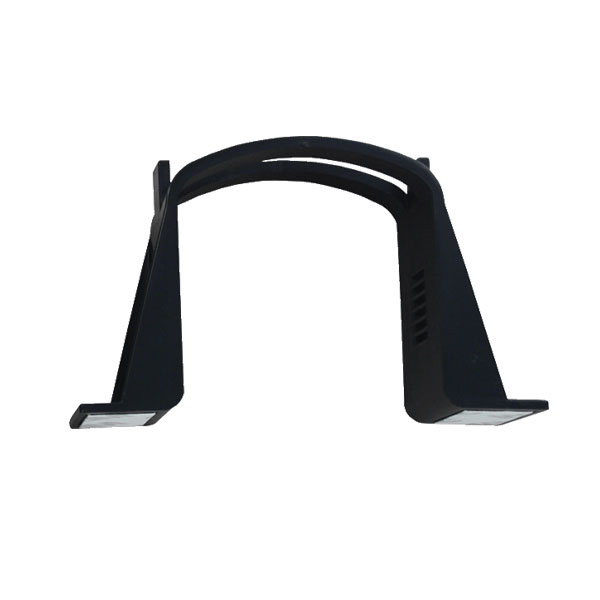

Replacement mounting bracket. A-WD3-BRK Replacement mounting bracket.
