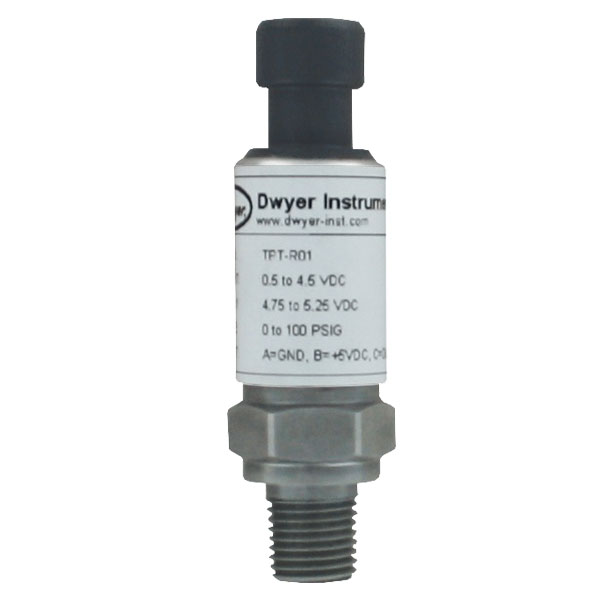

Dwyer Series TPT Industrial Pressure Transmitter

$ 109.00

Clear selection

Options

Accessories

SKU: N/A Categories: ,

Product Description

17-4PH SS Wetted Parts, Packard Electrical Connection

The Series TPT Pressure Transmitter is the ideal choice for all types of industrial pressure applications. Machined from a solid piece of 17-4PH SS, the TPT provides a leak proof, all metal system without O-rings, welds, or organics exposed to the pressure media. Its design allows for stable operation when subject to shock and vibration. Utilizing piezoresistive technology with digital compensation and temperature correction, the TPT gives high accuracy and stability under harsh environmental conditions. Available in ratiometric and 4 to 20 mA outputs.

Product Applications

  • Process automation and control
  • Test and measurement equipment
  • Factory automation
  • Energy management
  • OEM
  • Hydraulic systems
  • HVAC equipment
  • Industrial engines
  • Compressors

Models

Model Description
TPT-C01 Industrial pressure transmitter, 0-100 psi, 4-20mA.
TPT-C02 Industrial pressure transmitter, 0-250 psi, 4-20mA.
TPT-C03 Industrial pressure transmitter, 0-500 psi, 4-20mA.
TPT-C04 Industrial pressure transmitter, 0-1000 psi, 4-20mA.
TPT-C05 Industrial pressure transmitter, 0-2500 psi, 4-20mA.
TPT-C06 Industrial pressure transmitter, 0-5000 psi, 4-20mA.
TPT-R01 Industrial pressure transmitter, 0-100 psi, ratiometric.
TPT-R02 Industrial pressure transmitter, 0-250 psi, ratiometric.
TPT-R03 Industrial pressure transmitter, 0-500 psi, ratiometric.
TPT-R04 Industrial pressure transmitter, 0-1000 psi, ratiometric.
TPT-R05 Industrial pressure transmitter, 0-2500 psi, ratiometric.
TPT-R06 Industrial pressure transmitter, 0-5000 psi, ratiometric.

Specifications

Service:
Compatible liquids and gases.
Wetted Materials:
17-4PH SS.
Accuracy:
±1% FS (RMS).
Stability:
< ±0.25% FS per year.
Temperature Limits:
-13° to 185°F (-20° to 85°C).
Compensated Temperature Range:
-13° to 185°F (-20 to 85°C).
Pressure Limits:
Proof pressure: 2 x FS; Burst pressure: 3 x FS.
Enclosure Rating:
IP65.
Thermal Effect:
Zero shift: ±0.01% FS per 1°C; Span error: ±0.02% FS per
1°C.
Power Requirements:
See table on catalog page.
Output Signal:
See table on catalog page.
Loop Resistance:
< 100 Ω.
Electrical Connection:
Packard connector.
Process Connections:
1/4″-18 male NPT.
Shock:
±20 g.
Vibration:
50 g @ 20 to 2000 Hz.
Weight:
0.20 lb (0.09 kg).

Features

Robust construction to withstand high vibration

  • 17-4PH SS wetted material
  • Standard packard connector

Literature

Manuals

Instruction Manual

Catalog Pages

Series TPT Catalog Page

Drawings

Accessories

Model Number Description
A-960 3′ packard cable.
NISTCAL-PT1 NIST traceable calibration certificate for pressure transmitters.NOTE: EQUAL CERTS WILL BE CHARGED PER UNITS PURCHASED.
