Dwyer Series SCD DIN Rail Temperature/Process Controller

$ 79.00–$ 89.00

Clear selection

Accessories

SKU: N/A Categories: ,

Product Description

Universal Inputs, Up to 8 PID Loops, Modbus® Communications

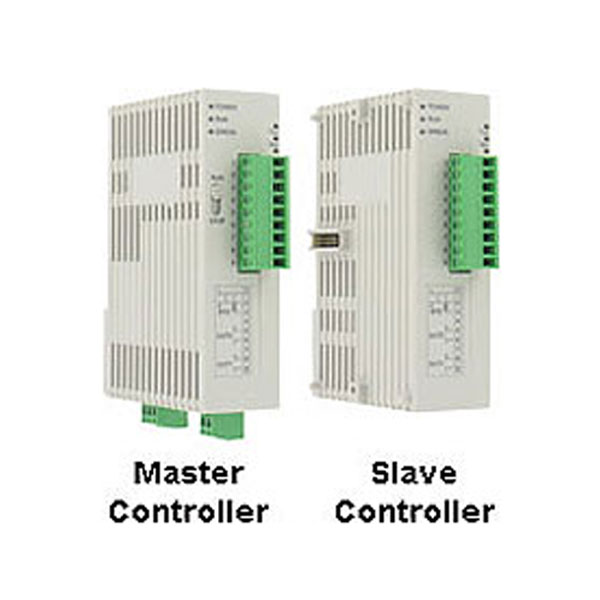

The Dwyer’s DIN Rail Mount Series SCD offers multiple PID loops in a compact size. Each SCD-1000 master controller can be combined with up to seven SCD-2000 slave controllers without any wires. Each controller has one universal input, one relay output and one user selected output. The outputs can be used for a dual loop to control heating and cooling or a single loop with an alarm. These controllers support up to 64 ramp/soak actions. The SCD series controllers are programmed via a user-friendly software program via the RS-485 Modbus® communications.

Product Applications

  • Industrial process
  • Packaging equipment

Models

Model Description
SCD-1023 DIN rail temperature/process master controller, (1) voltage pulse output and (1) relay output.
SCD-1033 DIN rail temperature/process master controller, (2) relay outputs.
SCD-1053 DIN rail temperature/process master controller, (1) current output and (1) relay output.
SCD-1063 DIN rail temperature/process master controller, (1) linear voltage output and (1) relay output.
SCD-2023 DIN rail temperature/process slave controller, (1) voltage pulse output and (1) relay output.
SCD-2033 DIN rail temperature/process slave controller, (2) relay outputs.
SCD-2053 DIN rail temperature/process slave controller, (1) current output and (1) relay output.
SCD-2063 DIN rail temperature/process slave controller, (1) linear voltage output and (1) relay output.

Specifications

Inputs:
Thermocouple, RTD, DC linear voltage, and DC currents.
Supply Voltage:
24 VDC.
Power Consumption:
3 W.
Operating Temperature:
32 to 122ºF (0 to 50ºC).
Memory Backup:
Non-volatile.
Control Output Ratings:
Relay: Resistive load @ 250 VAC 3 A; Voltage Pulse: 12 VDC, max. output current: 40 mA; Current: 4-20 mA output; Linear Voltage: 0 – 10 VDC.
Communication:
RS-485 Modbus® A-5-11/RTU communication protocol.
Weight:
2.7 oz (76.5 g).
Agency Approvals:
CE, RoHS, cUL, UL.

Features

  • Expandable from 1 to 8 process control loops
  • Universal transmitter or temperature sensor inputs
  • RS-485 Modbus® communication
  • Dual loop or single loop/alarm output control

Literature

Manuals

Catalog Pages

Series SCD Catalog Page

Approvals

Drawings

Software

Download Software – FREE!

Accessories

Model Number Description

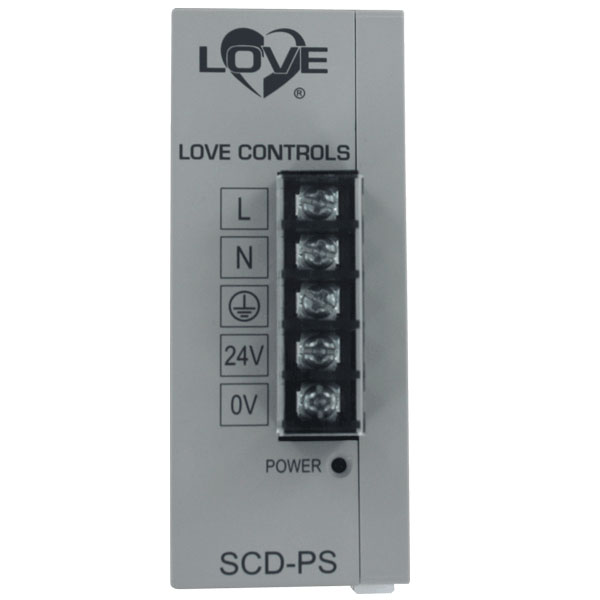

100 to 240 VAC/VDC to 24 VDC power supply. SCD-PS 100 to 240 VAC/VDC to 24 VDC power supply.
Configuration software. SCD-SW Configuration software.
Mini-Node™ RS-485 to USB converter. MN-1 Mini-Node™ RS-485 to USB converter.
Precision resistor, 250 ohm. A-277 Precision resistor, 250 ohm.
R/C snubber (recommended for inductive loads like a solenoid or contactor). A-600 R/C snubber (recommended for inductive loads like a solenoid or contactor).
