Dwyer Series MP Mini-Photohelic® Differential Pressure Switch/Gage

$ 240.00

Clear selection

Options

Accessories

SKU: N/A Categories: ,

Product Description

Compact, Low Cost Switch/Gage

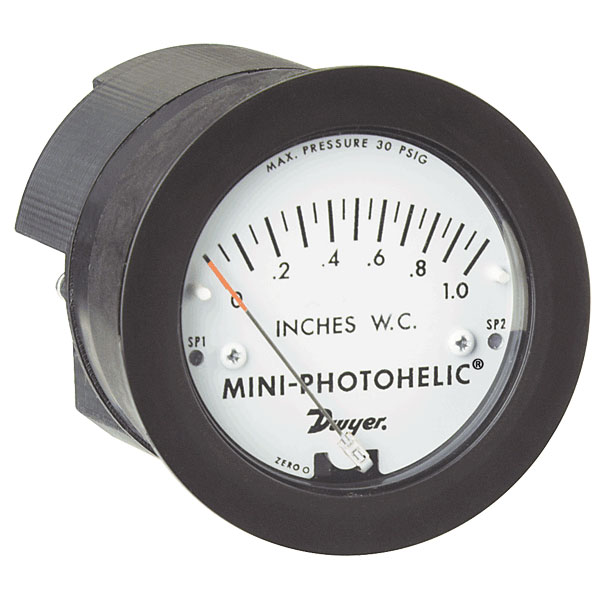

The Series MP Mini-Photohelic® differential pressure switch/gage combines the time proven Minihelic® II differential pressure gage with two SPDT switching set points. The Mini-Photohelic® switch/gage is designed to measure and control positive, negative, or differential pressures consisting of non-combustible and non-corrosive gases. Gage reading is independent of switch operation. Switching status is visible by LED indicators located on the front and rear of the gage. Set points are adjusted with push buttons on back of unit. This extremely compact switch/gage is ideal for fume hoods, dust collection, pneumatic conveying and clean room applications.

Product Applications

  • Fume hoods
  • Dust collection
  • Pneumatic conveying
  • Clean room

Models

Model Description
MP-000 Differential pressure switch/gage, range 0-0.5″ water.
MP-001 Differential pressure switch/gage, range 0-1.0″ water.
MP-002 Differential pressure switch/gage, range 0-2.0″ water.
MP-003 Differential pressure switch/gage, range 0-3.0″ water.
MP-005 Differential pressure switch/gage, range 0-5.0″ water.
MP-010 Differential pressure switch/gage, range 0-10″ water.
MP-020 Differential pressure switch/gage, range 0-20″ water.
MP-100MM Differential pressure switch/gage, range 0-100 mm water.
MP-125PA Differential pressure switch/gage, range 0-125 Pa.
MP-1KPA Differential pressure switch/gage, range 0-1 kPa.
MP-250PA Differential pressure switch/gage, range 0-250 Pa.
MP-25MM Differential pressure switch/gage, range 0-25 mm water.
MP-3KPA Differential pressure switch/gage, range 0-3 kPa.
MP-500PA Differential pressure switch/gage, range 0-500 Pa.
MP-50MM Differential pressure switch/gage, range 0-50 mm water.

Specifications

GAGE SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±5% of FS @ 70°F (21.1°C). Gage face mounted in vertical position.
Pressure Limits: 30 psig (2.067 bar).
Temperature Limits: 20 to 120°F (-6.7 to 49°C).
Process Connections: Barbed for 3/16″ I.D. tubing; 1/8″ male NPT optional.
Size: 4-1/8″ (104.78 mm) depth x 3-1/16″ (77.79 mm) diameter.
Weight: 23 oz (652 g).

SWITCH SPECIFICATIONS
Switch Type: (2) SPDT relays.
Electrical Rating: 5A @ 120/240 VAC Resistive; 5A @ 30 VDC.
Electrical Connections: Screw type terminal block. Accepts 22-12 AWG wire.
Power Requirements: 24 VDC/24 VAC 50/60 Hz 4 watts.
Mounting Orientation: Gage face in vertical position.
Set Point Adjustment: Push Buttons.
Standard Accessories: (2) mounting screws, (1) .050″ hex allen wrench.
Agency Approvals: CE, cUL, UL.

Features

  • Gage reading unaffected by switch operation and will continue to read pressure even during power loss
  • Visible switch status LED provides indication of set point switching state
  • Compact design but with the power of larger devices can meet the same application specifications

Options

  • For optional 1/8″ male NPT connections, add suffix -NPT to model numbers.

    Example: MP-000-NPT. No extra charge. Allow additional lead time.

Literature

Manuals

Instruction Manual

Catalog Pages

Series MP Catalog Page

Approvals

Drawings

Accessories

Model Number Description
4 A-489 4″ 303 SS straight static pressure tip with flange.
Static pressure tip, for 1/4 A-301 Static pressure tip, for 1/4″ metal tubing connection.
Static pressure tip, for 3/16 A-302 Static pressure tip, for 3/16″ and 1/8″ ID plastic or rubber tubing.
303SS static pressure tip with mounting flange, 4 A-302F-A 303SS static pressure tip with mounting flange, 4″ hook style. For 3/16″ ID rubber or plastic tubing, includes mounting screws.

Model Chart

EXAMPLE MP 000 AT Series MP-000-AT Mini-Photohelic® Differential Pressure Switch/Gage, range 0-0.5″ w.c., with aluminum tag.
SERIES MP     Mini-Photohelic® Differential Pressure Switch/Gage
RANGE   000
001
002
003
005
010
020
040
060
100
5PSI
10PSI
15PSI
25MM
50MM
100MM
125PA
250PA
500PA
1KPA
3KPA
10KPA
  0-0.5″ w.c.
0-1″ w.c.
0-2″ w.c.
0-3″ w.c.
0-5″ w.c.
0-10″ w.c.
0-20″ w.c.
0-40″ w.c.
0-60″ w.c.
0-100″ w.c.
0-5 psi
0-10 psi
0-15 psi
0-25 mm w.c.
0-50 mm w.c.
0-100 mm w.c.
0-125 Pa
0-250 Pa
0-500 Pa
0-1 kPa
0-3 kPa
0-10 kPa
OPTIONS     AT
DEED
EDED
EDDE
HL
LH
LL
NIST
NPT
Aluminum Tag
Energizing (set point low: de-energizing/energizing; set point high: energizing/de-energizing)
Energizing (set point low: energizing/de-energizing; set point high: energizing/de-energizing)
Energizing (set point low: energizing/de-energizing; set point high: de-energizing/energizing)
Latching Option (high/low)
Latching Option (low/high)
Latching Option (low/low)
NIST Certificate of Calibration
NPT Connections
