Series ADPS/EDPS Differential Pressure Switch

$ 21.25$ 28.00

Clear selection
SKU: N/A Categories: ,

Product Description

With Dual Scale Field Adjustable Set Point Knob

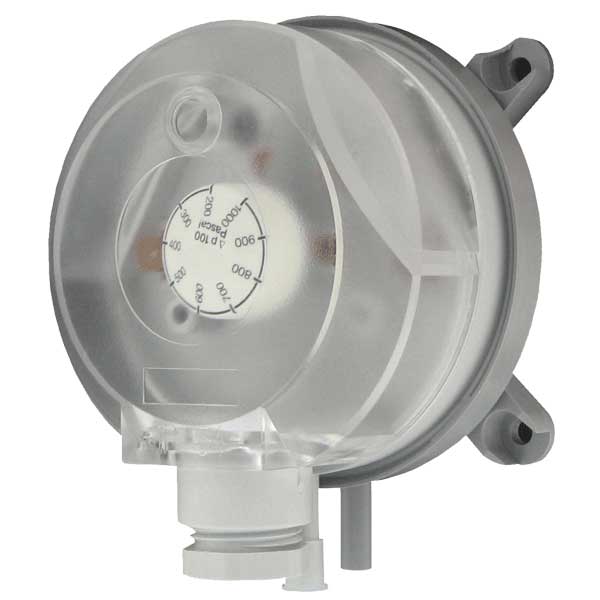

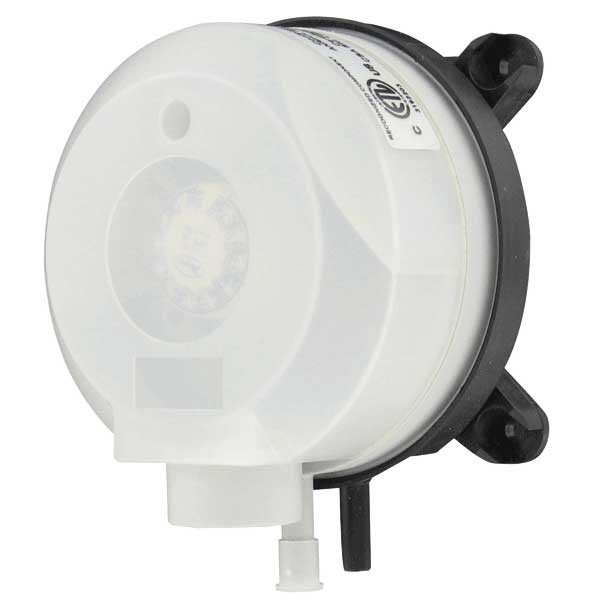

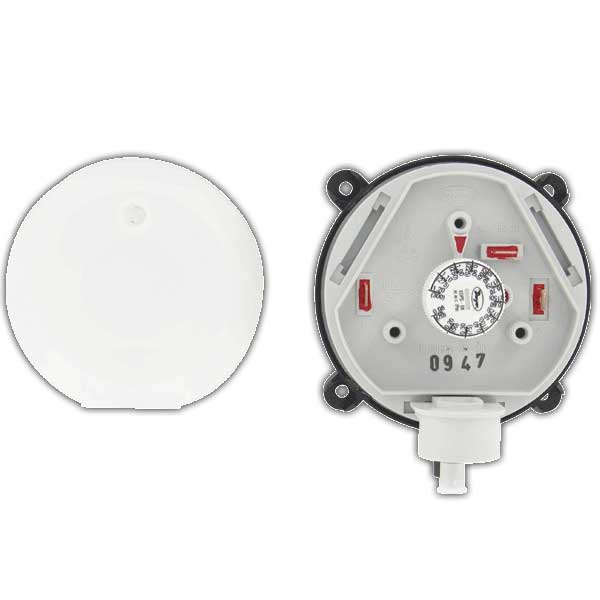

The Series ADPS/EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage. The ADPS/EDPS is available with settings from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa). The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases. Series EDPS models meet UL508 and are constructed of plenum rated plastics. The compact size, adjustment knob and low cost make the ADPS/EDPS the perfect choice for HVAC applications.

Please see SERIES AT1ADPS for ATEX approved.

Product Applications

  • Monitoring air filters and ventilators.
  • Monitoring industrial cooling-air circuits.
  • Overheating protection for fan heaters.
  • Monitoring flows in ventilation ducts.
  • Controlling air and fire-protection dampers.
  • Frost protection for heat exchanges.

Models

Model Description
ADPS-03-1-N

Adjustable differential pressure switch, set point range 0.20 to 2.00″ w.c., 1/2″ NPT connection.
ADPS-03-2-N

Adjustable differential pressure switch, set point range 0.20 to 2.00″ w.c., M20 connection.
ADPS-03-2-N-C

Adjustable differential pressure switch, set point range 0.20 to 2.00″ w.c., M20 connection, with two static tips and 7 ft (2.1 m) of PVC tubing.
ADPS-04-1-N

Adjustable differential pressure switch, set point range 0.12 to 1.60″ w.c., 1/2″ NPT connection.
ADPS-04-2-N

Adjustable differential pressure switch, set point range 0.12 to 1.60″ w.c., M20 connection.
ADPS-04-2-N-C

Adjustable differential pressure switch, set point range 0.12 to 1.60″ w.c., M20 connection, with two static tips and 7 ft (2.1 m) of PVC tubing.
ADPS-05-1-N

Adjustable differential pressure switch, set point range 0.80 to 4.00″ w.c., 1/2″ NPT connection.
ADPS-05-2-N

Adjustable differential pressure switch, set point range 0.80 to 4.00″ w.c., M20 connection.
ADPS-05-2-N-C

Adjustable differential pressure switch, set point range 0.80 to 4.00″ w.c., M20 connection, with two static tips and 7 ft (2.1 m) of PVC tubing.
ADPS-06-1-N

Adjustable differential pressure switch, set point range 2.00 to 10.00″ w.c., 1/2″ NPT connection.
ADPS-06-2-N

Adjustable differential pressure switch, set point range 2.00 to 10.00″ w.c., M20 connection.
ADPS-06-2-N-C

Adjustable differential pressure switch, set point range 2.00 to 10.00″ w.c., M20 connection, with two static tips and 7 ft (2.1 m) of PVC tubing.
ADPS-07-1-N

Adjustable differential pressure switch, set point range 4.00 to 16.00″ w.c., 1/2″ NPT connection.
ADPS-07-2-N

Adjustable differential pressure switch, set point range 4.00 to 16.00″ w.c., M20 connection.
ADPS-07-2-N-C

Adjustable differential pressure switch, set point range 4.00 to 16.00″ w.c., M20 connection, with two static tips and 7 ft (2.1 m) of PVC tubing.
ADPS-08-1-N

Adjustable differential pressure switch, set point range 0.08 to 1.20″ w.c., 1/2″ NPT connection.
ADPS-08-1-N-C

Adjustable differential pressure switch, set point range 0.08 to 1.20″ w.c., 1/2″ NPT connection, with two static tips and 7 ft (2.1 m) of PVC tubing.
ADPS-08-2-N

Adjustable differential pressure switch, set point range 0.08 to 1.20″ w.c., M20 connection.
ADPS-08-2-N-C

Adjustable differential pressure switch, set point range 0.08 to 1.20″ w.c., M20 connection, with two static tips and 7 ft (2.1 m) of PVC tubing.
EDPS-03-1-N

Adjustable differential pressure switch, range .20-2.00″ w.c., with 1/2″ NPT connection.
EDPS-03-2-N

Adjustable differential pressure switch, range .20-2.00″ w.c., with M20 connection.
EDPS-04-1-N

Adjustable differential pressure switch, range .12-1.60″ w.c., with 1/2″ NPT connection.
EDPS-04-2-N

Adjustable differential pressure switch, range .12-1.60″ w.c., with M20 connection.
EDPS-05-1-N

Adjustable differential pressure switch, range .80-4.00″ w.c., with 1/2″ NPT connection.
EDPS-05-2-N

Adjustable differential pressure switch, range .80-4.00″ w.c., with M20 connection.
EDPS-06-1-N

Adjustable differential pressure switch, range 2.00-10.00″ w.c., with 1/2″ NPT connection.
EDPS-06-2-N

Adjustable differential pressure switch, range 2.00-10.00″ w.c., with M20 connection.
EDPS-07-1-N

Adjustable differential pressure switch, range 4.00-16.00″ w.c., with 1/2″ NPT connection.
EDPS-07-2-N

Adjustable differential pressure switch, range 4.00-16.00″ w.c., with M20 connection.
EDPS-08-1-N

Adjustable differential pressure switch, range .08-1.20″ w.c., with 1/2″ NPT connection.
EDPS-08-2-N

Adjustable differential pressure switch, range .08-1.20″ w.c., with M20 connection.

Specifications

Service:
Air and non-combustible, compatible gases.
Wetted Materials:
ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA
6.6; Cover: Polystyrene;
EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6;
Cover: Polystyrene; Materials UL94 V-0 rated.
Temperature Limits:
Process and ambient temperature from -4 to 185°F (-20 to 85°C).
Pressure Limits:
Max. Operating Pressure: 40″ w.c. (10 kPa) for all pressure ranges.
Switch Type:
Single-pole double-throw (SPDT).
Electrical Rating:
Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching
rate: 6 cycles/min.
Electrical Connections:
Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection.
Process Connections:
5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing.
Enclosure Rating:
NEMA 3 (IP54).
Mounting Orientation:
Vertically, with pressure connections pointing downwards.
Mechanical Working Life:
Over 106 switching operations.
Weight:
5.6 oz (160 g).
Agency Approvals:
CE, ETL approved to UL508 and CSA C22.2#14 (EDPS
only), RoHS.

Literature

Manuals

Instruction Manual – ADPS
Instruction Manual – EDPS

Catalog Pages

Series ADPS/EDPS Catalog Page

Approvals

Series ADPS/EDPS Catalog Page
CE Approval (ADPS)
ETL Approval_CA (EDPS)
ETL Approval_US (EDPS)
RoHS (EDPS)
CE Approval (EDPS)

Drawings

ADPS .dwg
ADPS .pdf
EDPS .dwg
EDPS .pdf
3-D Drawing for A-489

Accessories

Model Number Description

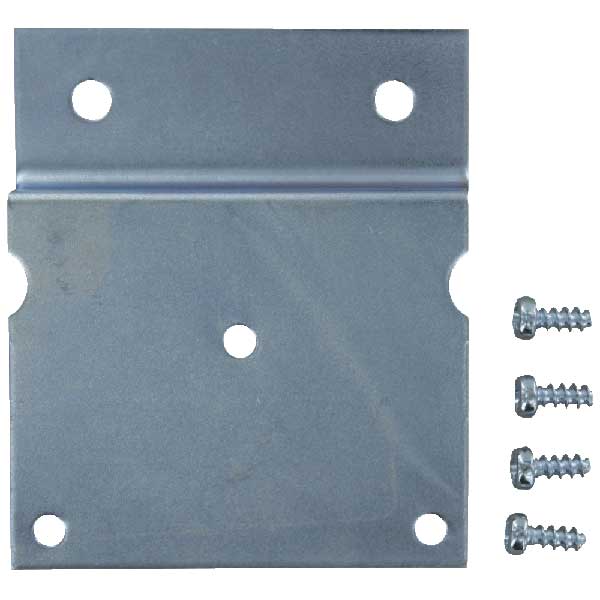

“L” type metal mounting bracket with screws. A-288 “L” type metal mounting bracket with screws.
“S” type metal mounting bracket with screws. A-289 “S” type metal mounting bracket with screws.
Plastic static pressure tip. A-480 Plastic static pressure tip.

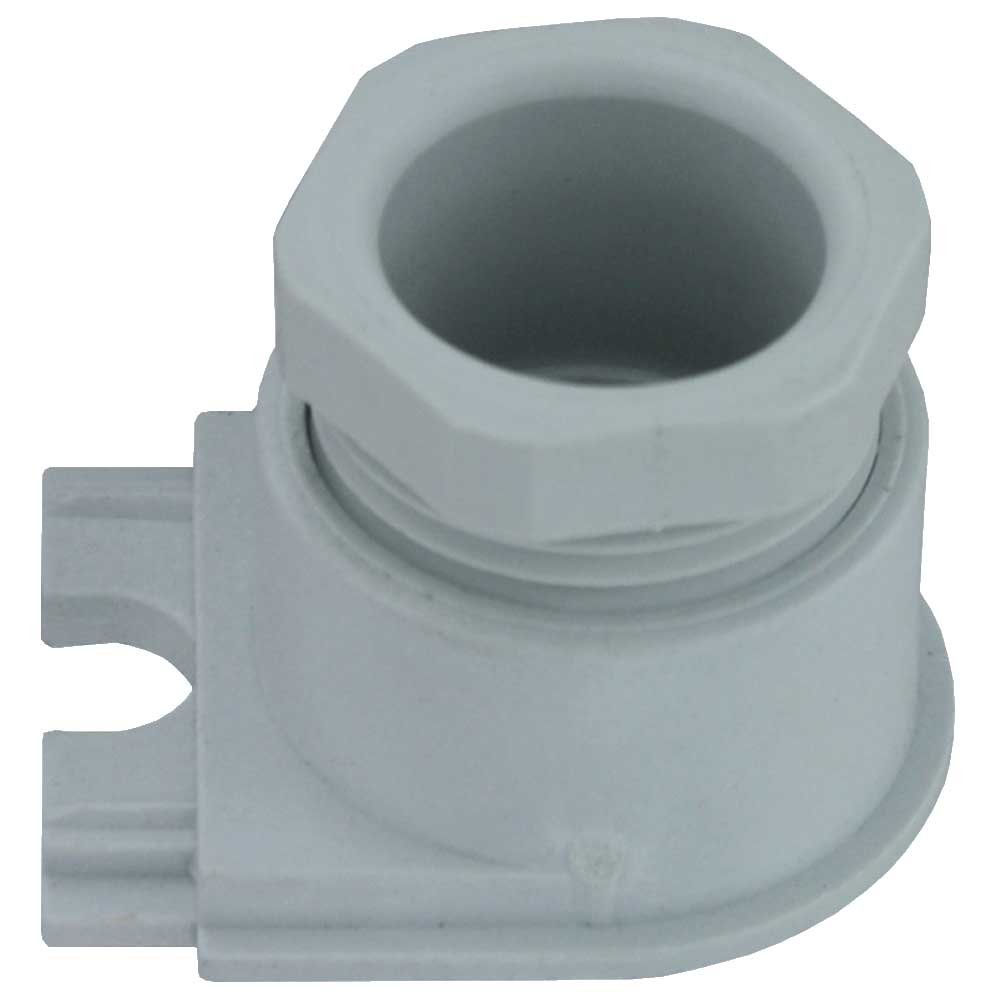

M20 x 1.5 cable gland fitting adapter. A-482 M20 x 1.5 cable gland fitting adapter.

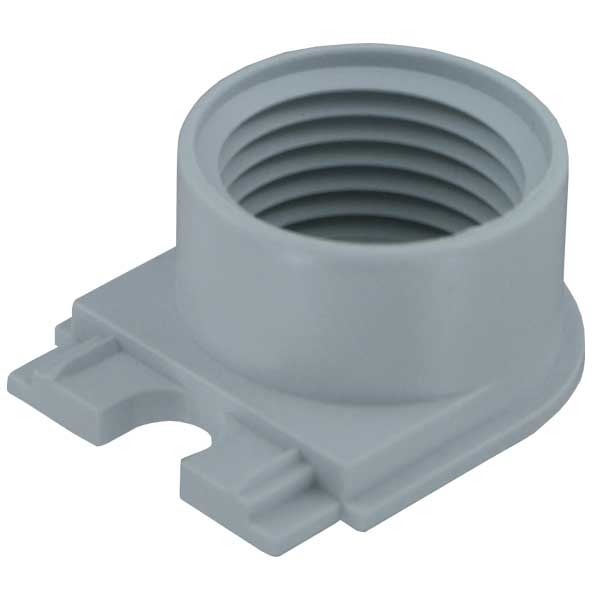

1/2 A-483 1/2″ conduit fitting adapter.
Metal 90° static tip. A-484 Metal 90° static tip.

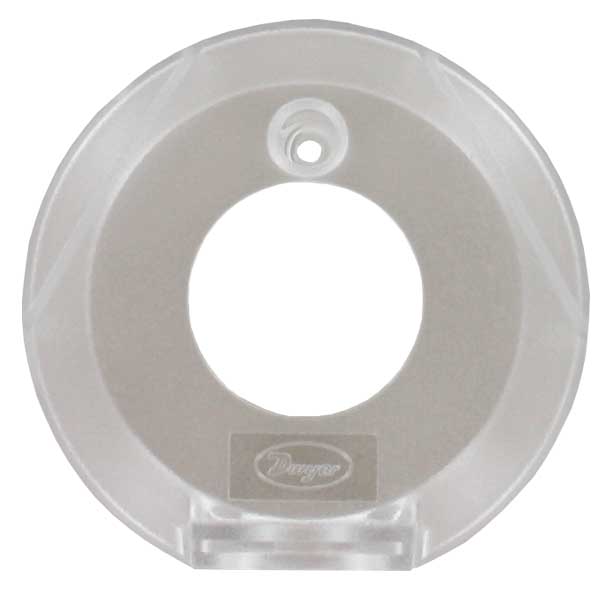

Clear plastic cover for ADPS. A-485 Clear plastic cover for ADPS.
4 A-489 4″ 303 SS straight static pressure tip with flange.

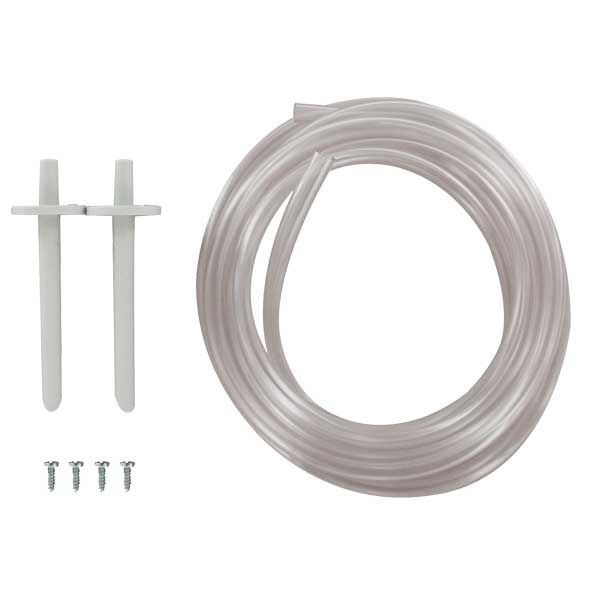

Installer kit, (includes 2 static pressure tips and PVC tubing). A-481 Installer kit, (includes 2 static pressure tips and PVC tubing).

FAQ

Question
EDPS series, can the ‘delta-P’ screw be used to increase or decrease deadband?
Answer
The ∆P screw should never be adjusted. It is used to calibrate the instrument to make sure it will switch within the specified range.
Question
Will a Dwyer pressure switch be damaged if the pressure exceeding the maximum set-point is applied to the switch?
Answer
No. Not unless the maximum pressure rating of the switch is exceeded.
