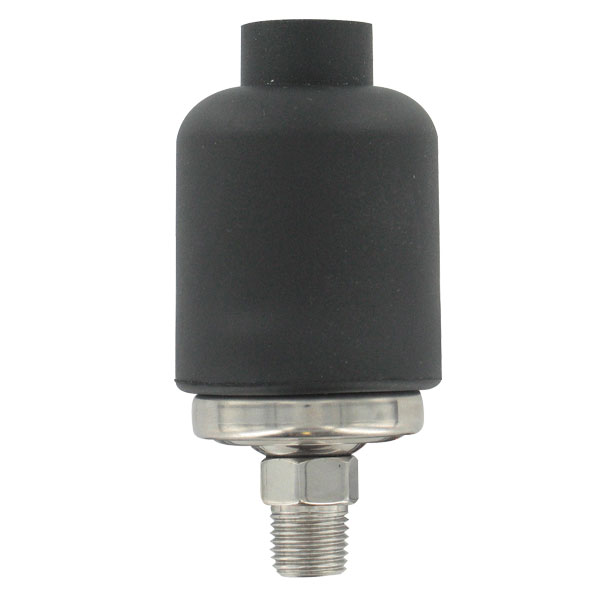

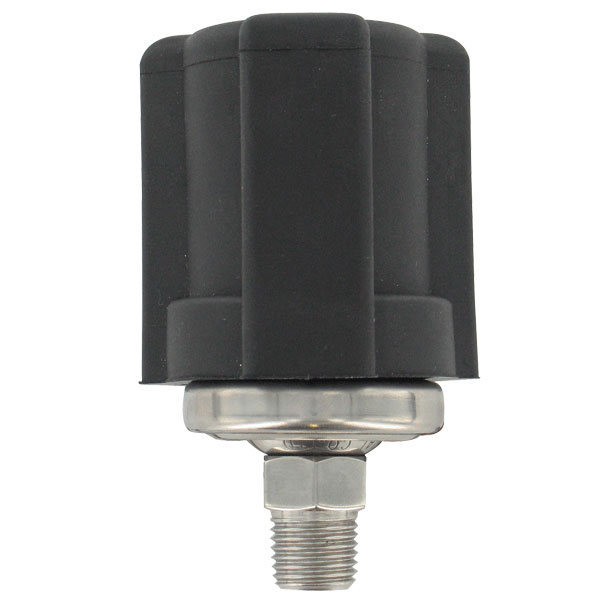

Dwyer Series A6 Durable Pressure Switch

$ 21.00

SKU: N/A Categories: Pressure, Single Pressure

Description
Models
Specifications
Features
Literature
Approvals
Drawings
Accessories

Product Description

Designed for Extended Duty, Simple and Reliable

Series A6 Durable Pressure Switches have been specifically designed to stand up to extended duty applications. These switches are constructed with a polyimide film diaphragm and are compatible with a variety of fluids. For ease of installation, the switches come with a 1/4″ male NPT process connection and can be mounted in any orientation. The Series A6 pressure switches are compact and have great setpoint integrity, and feature simple, easy set-point field adjustment.

Product Applications

OEM
Process equipment
Process applications

Models

Model	Description
A6-153221	Pressure switch, set point range 0.5-1 ±0.3 psi (0.03-0.07 ±0.02 bar).
A6-251221	Durable brass pressure switch, adjustable from 1.1 to 3 psi, SPDT, 1/4″ NPT male connection.
A6-253221	Pressure switch, set point range 1.1-3 ±0.5 psi (0.08-0.21 ±0.03 bar).
A6-353221	Pressure switch, set point range 3.1-7 ±1 psi (0.21-0.48 ±0.07 bar).
A6-451221	Durable brass pressure switch, adjustable from 8 to 13 psi, SPDT, 1/4″ NPT male connection.
A6-453221	Pressure switch, set point range 8-13 ±2 psi (0.55-0.90 ±0.18 bar).
A6-553221	Pressure switch, set point range 14-24 ±3 psi (0.97-1.65 ±0.21 bar).
A6-651221	Durable brass pressure switch, adjustable from 25 to 50 psi, SPDT, 1/4″ NPT male connection.
A6-653221	Pressure switch, set point range 25-50 ±5 psi (1.72-3.45 ±0.34 bar).
A6-751221	Durable brass pressure switch, adjustable from 51 to 90 psi, SPDT, 1/4″ NPT male connection.
A6-753221	Pressure switch, set point range 51-90 ±7 psi (3.52-6.21 ±0.48 bar).
A6-851221	Durable brass pressure switch, adjustable from 81 to 150 psi, SPDT, 1/4″ NPT male connection.
A6-853221	Pressure switch, set point range 91-150 ±10 psi (6.27-10.34 ±0.69 bar).

Specifications

Service:: Air, motor oils, transmission oils, jet fuels, and similar hydrocarbon media.
Wetted Materials:: Base: Brass or 304 SS, Diaphragm: polyimide film.
Temperature Limits:: -40 to 248°F (-40 to 120°C).
Pressure Limits:: Operating Pressure: 150 psi (10.3 bar) for 0.5-24 psi set point ranges, 250 psi (17.2 bar) for 25-150 psi set-point ranges. Proof Pressure: 500 psi (34.5 bar). Burst Pressure: 750 psi (51.7 bar) for 0.5-24 psi set point ranges, 1250 psi (86.2 bar) for 25-150 psi set-point ranges.
Enclosure Rating:: General purpose or with cover: IP65 – Weatherproof.
Repeatability:: ±10% of set-point.
Switch Type:: 1 SPST NO, 1 SPST NC. NO and NC switch independent from each other.
Electrical Ratings:: Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC.
Electrical Connections:: #8-32 screw terminals.
Process Connection:: 1/4″ male NPT.
Mounting Orientation:: Switch can be installed in any position.
Set-point Adjustment:: Screw.
Weight:: 0.13 lb (0.06 kg).
Agency Approvals:: CE.

Features

High switch cycle means long life for extended duty applications
Mounting in any position and feature simple makes a reliable switching for equipment and OEM applications
