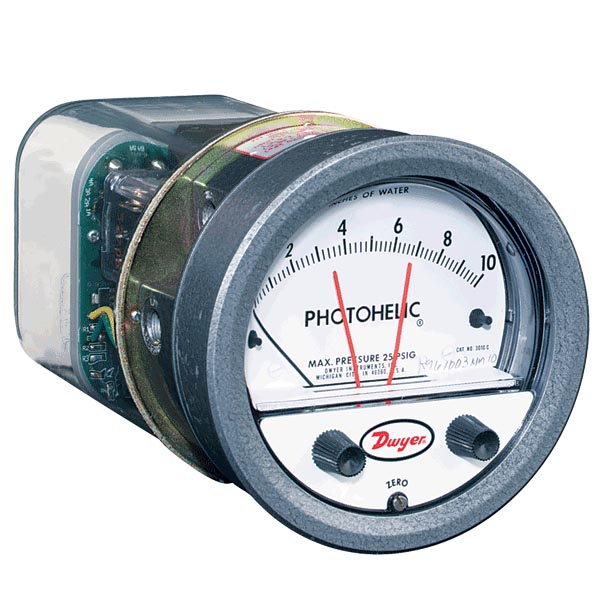

Dwyer Series A3000 Photohelic® Pressure Switch/Gage

Product Description

3-in-1 Indicating Gage, Lo-limit and Hi-limit Control

Photohelic® Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic® gage design. The Photohelic® switch/gage measures and controls positive, negative or differential pressures of air and compatible gases. Standard models are rated to 25 psig (1.7 bar) with options to 35 (2.4) or 80 (5.5 bar) psig. Single pressure 36000S models measure to 6000 psig (413 bar) with a 9000 psig (620 bar) rating. Two phototransistor actuated, DPDT relays are included for low/high limit control. Easy to adjust set point indicators are controlled by knobs located on the gage face. Individual set point deadband is one pointer width – less than 1% of full scale. Set points can be interlocked to provide variable deadband – ideal for control of fans, dampers, etc. Gage reading is continuous and unaffected by switch operation, even during loss of electrical power. Choose from full scale pressure ranges from a low 0-.25″ (0-6 mm) w.c. up to 30 psi (21 bar); single positive pressure to 6000 psig (413 bar).

Photohelic Sensing – How It Works
In typical applications, these Dwyer switch/gages control between high and low pressure set points. When pressure changes, reaching either set point pressure, the infrared light to the limiting phototransistor is cut off by the helix-driven light shutter. The resulting phototransistor signal is electronically amplified to actuate its DPDT slave relay and switching occurs. Dead band between make and break is 1% of full scale or less – just enough to assure positive, chatter-free operation.

Relay-Transformer Features
A plastic housing protects all electronic components. Solid-state and integrated circuit electronics are on glass-epoxy printed circuit boards and self-extinguishing terminal boards.

Please see SERIES AT3A3000 for ATEX approved.

Product Applications

  • Air Conditioner Systems
  • Clean Rooms
  • Fume Exhaust Systems

Models

Model Description
A3000-0 Pressure switch/gage, range 0-.50″ w.c.
A3000-00 Pressure switch/gage, range 0-.25″ w.c.
A3000-00AV Pressure switch/gage, range 0-.25″ w.c./300-2000 FPM. Note: Pitot tube required.
A3000-00N Pressure switch/gage, range .05 to .20″ w.c.
A3000-0AV Pressure switch/gage, range 0-.50″ w.c./500-2800 FPM. Note: Pitot tube required.
A3000-1.5KPA Pressure switch/gage, range 0-1.5 kPa.
A3000-100CM Pressure switch/gage, range 0-100 cm w.c.
A3000-100MM Pressure switch/gage, range 0-100 mm w.c.
A3000-10KPA Pressure switch/gage, range 0-10 kPa.
A3000-10MM Pressure switch/gage, range 0-10 mm w.c.
A3000-125PA Pressure switch/gage, range 0-125 Pa.
A3000-150CM Pressure switch/gage, range 0-150 cm w.c.
A3000-15CM Pressure switch/gage, range 0-15 cm w.c.
A3000-15KPA Pressure switch/gage, range 0-15 kPa.
A3000-1KPA Pressure switch/gage, range 0-1 kPa.
A3000-200CM Pressure switch/gage, range 0-200 cm w.c.
A3000-20CM Pressure switch/gage, range 0-20 cm w.c.
A3000-20KPA Pressure switch/gage, range 0-20 kPa.
A3000-250CM Pressure switch/gage, range 0-250 cm w.c.
A3000-250PA Pressure switch/gage, range 0-250 Pa.
A3000-25CM Pressure switch/gage, range 0-25 cm w.c.
A3000-25KPA Pressure switch/gage, range 0-25 kPa.
A3000-25MM Pressure switch/gage, range 0-25 mm w.c.
A3000-300CM Pressure switch/gage, range 0-300 cm w.c.
A3000-30KPA Pressure switch/gage, range 0-30 kPa.
A3000-3KPA Pressure switch/gage, range 0-3 kPa.
A3000-4KPA Pressure switch/gage, range 0-4 kPa.
A3000-500PA Pressure switch/gage, range 0-500 Pa.
A3000-50CM Pressure switch/gage, range 0-50 cm w.c.
A3000-50MM Pressure switch/gage, range 0-50 mm w.c.
A3000-5KPA Pressure switch/gage, range 0-5 kPa.
A3000-60PA Pressure switch/gage, range 0-60 Pa.
A3000-6MM Pressure switch/gage, range 0-6 mm w.c.
A3000-750PA Pressure switch/gage, range 0-750 Pa.
A3000-80CM Pressure switch/gage, range 0-80 cm w.c.
A3000-80MM Pressure switch/gage, range 0-80 mm w.c.
A3000-8KPA Pressure switch/gage, range 0-8 kPa.
A3001 Pressure switch/gage, range 0-1.0″ w.c.
A3001AV Pressure switch/gage, range 0-1.0″ w.c.500-4000 FPM. Note: Pitot tube required.
A3002 Pressure switch/gage, range 0-2.0″ w.c.
A3002AV Pressure switch/gage, range 0-2.0″ w.c./1000-5600 FPM. Note: Pitot tube required.
A3003 Pressure switch/gage, range 0-3.0″ w.c.
A3004 Pressure switch/gage, range 0-4.0″ w.c.
A3005 Pressure switch/gage, range 0-5.0″ w.c.
A3006 Pressure switch/gage, range 0-6.0″ w.c.
A3008 Pressure switch/gage, range 0-8.0″ w.c.
A3010 Pressure switch/gage, range 0-10″ w.c.
A3010AV Pressure switch/gage, range 0-10″ w.c./2000-12500 FPM. Note: Pitot tube required.
A3015 Pressure switch/gage, range 0-15″ w.c.
A3020 Pressure switch/gage, range 0-20″ w.c.
A3025 Pressure switch/gage, range 0-25″ w.c.
A3030 Pressure switch/gage, range 0-30″ w.c.
A3040 Pressure switch/gage, range 0-40″ w.c.
A3050 Pressure switch/gage, range 0-50″ w.c.
A3060 Pressure switch/gage, range 0-60″ w.c.
A3080 Pressure switch/gage, range 0-80″ w.c.
A3100 Pressure switch/gage, range 0-100″ w.c.
A3150 Pressure switch/gage, range 0-150″ w.c.
A3201 Pressure switch/gage, range 0-1 psi.
A3202 Pressure switch/gage, range 0-2 psi.
A3203 Pressure switch/gage, range 0-3 psi.
A3204 Pressure switch/gage, range 0-4 psi.
A3205 Pressure switch/gage, range 0-5 psi.
A3210 Pressure switch/gage, range 0-10 psi, medium pressure option standard.
A3215 Pressure switch/gage, range 0-15 psi, medium pressure option standard.
A3220 Pressure switch/gage, range 0-20 psi, medium pressure option standard.
A3230 Pressure switch/gage, range 0-30 psi, high pressure option standard.
A3300-0 Pressure switch/gage, range .25-0-.25″ w.c.
A3300-1KPA Pressure switch/gage, range .5-0-.5 kPa.
A3300-20MM Pressure switch/gage, range 10-0-10 mm w.c.
A3300-250PA Pressure switch/gage, range 125-0-125 Pa.
A3300-30MM Pressure switch/gage, range 15-0-15 mm w.c.
A3300-3KPA Pressure switch/gage, range 1.5-0-1.5 kPa.
A3300-500PA Pressure switch/gage, range 250-0-250 Pa.
A3301 Pressure switch/gage, range .5-0-.5″ w.c.
A3302 Pressure switch/gage, range 1-0-1″ w.c.
A3304 Pressure switch/gage, range 2-0-2″ w.c.
A3310 Pressure switch/gage, range 5-0-5″ w.c.
A3320 Pressure switch/gage, range 10-0-10″ w.c.
A3330 Pressure switch/gage, range 15-0-15″ w.c.

Specifications

GAGE SPECIFICATIONS
Service:
Air and non-combustible, compatible gases.
Wetted Materials:
Consult Factory.
Accuracy:
±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models.
Pressure Limits:
-20″ Hg. to 25 psig (-0.677 to 1.72 bar). MP option; 35 psig
(2.41 bar), HP option; 80 psig (5.52 bar).
Temperature Limits:
20 to 120°F. (-6.67 to 48.9°C). Low temperature option available.
Process Connections:
1/8″ female NPT.
Size:
4″ (101.6 mm) dial face, 5″ (127 mm) O.D. x 8-1/4″ (209.55 mm).
Weight:
4 lb (1.81 kg).

SWITCH SPECIFICATIONS
Switch Type:
Each setpoint has 2 Form C relays (DPDT).
Repeatability:
±1% of FS.
Electrical Rating:
10A @ 28 VDC, 10A @ 120, 240 VAC.
Electrical Connections:
Screw terminals. Use 167°F (75°C) copper
conductors only.
Power Requirements:
120 VAC, 50/60 Hz; 240 VAC & 24 VAC power
optional.
Mounting Orientation:
Diaphragm in vertical position. Consult factory for
other position orientations.
Set Point Adjustment:
Adjustable knobs on face.
Agency Approvals:
CE, CSA, UL. Optional-EXPL explosion-proof
enclosure does not possess any agency approvals.

Features

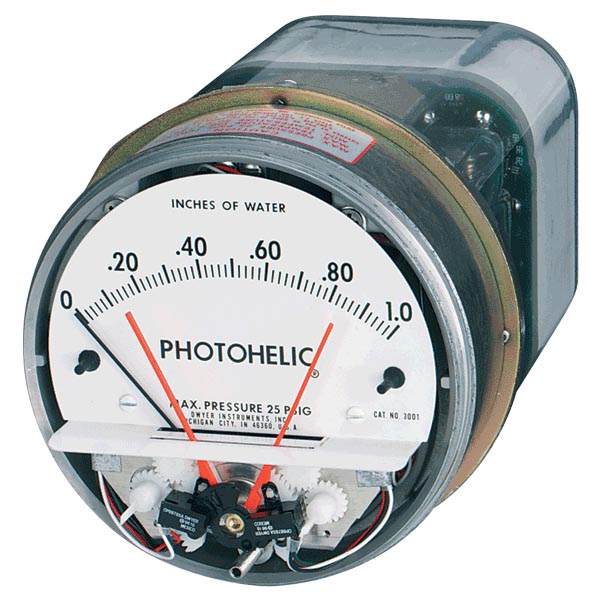

  • Bezel and front cover (with set point knobs and zero adjustment
    screw) removed to expose Photohelic® switch/gage set point mechanism.Cover
    is clear polycarbonate plastic.
  • Gage pointer and light shutter are mounted on helix and balancing
    counterweight. Shutter passes through slot in optical limit switch
    to expose phototransistors to integral infrared light source or mask
    them depending on applied pressure.
  • Light shield effectively protects phototransistors from strong
    outside light sources yet allows free pointer movement. It also gives
    interior a clean “finished” look.
  • Optical limit switches are used for reliability and long service
    life. Attached directly to set pointers, they are individually aligned
    to assure precise switching accuracy.
  • Semi-Flexible drive shaft connects to set point knobs.
  • Zero adjustment screw connects to screw in cover to adjust
    zero pressure reading.
  • Plastic enclosure protects electronic components and electrical
    connections.
  • Polycarbonate connection or terminal board is self-extinguishing.
  • Glass epoxy printed circuit boards for durability and permanence.
  • Load relays are DPDT with latching feature for maximum application
    versatility.
  • Electronics are designed to operate on 50/60 Hz, 120 volt
    current with 10% over or under voltage. Special units for other voltages
    are available.
  • Switch set pointers show switch settings at all times.
  • Spring loaded friction clutch prevents operator damage of
    set point mechanism.
  • 3-in-1 instrument allows the reduction of several instruments with one product, saving inventory, installation time and money.
  • Patented design and 1% full scale deadband provides quick response to pressure changes means no delay in switching and chatter-free operation.
  • A wide range of models that can meet pressure measurement specifications from low to very high.

Options

  • -SR Single contact, right set point, for actuation on increasing
    or decreasing pressure.
  • -OLS OEM Model, less relay and transformer components and housing
    but including infared diodes and phototransistor(s), light shutter and
    set pointer(s). For single or double contact.
  • -RMR Remote-Mounted Relay, relay pack may be mounted remotely
    from gage. Standard length is 5 ft. For other lengths, specify cable
    length required.
  • -TAMP Tamper-proof knobs, low temperature option, special scales, voltages
    and other features and modifications are available.
  • Special Housings available include Weatherproof (NEMA 4) and Explosion-proof
    (NEMA 7 & 9; NEC Cl I, Gr C&D; Cl II, Gr E, F&G; Cl III). Contact
    Customer Service for detailed dimension drawings.
  • Scale No. 3401 Square Root Specify Range.
  • Scale No. 3402 Blank Scale Specify Range.
  • High & Low Latching Circuits. Dwyer Photohelic® switch/gages can be wired for high-latching, low-latching or
    combination high-low latching circuits. That is, the equipment will
    hold in these respective positions once activated and until manually reset.
    This can
    be particularly useful for alarm and signal applications where control is accomplished
    by another Photohelic® switch/gage or other means. Complete
    wiring and operational instructions are included. Where manual reset is required
    a dry
    circuit push button such as Dwyer
    Part A-601 should be used.

Literature

Manuals

Catalog Pages

Series A3000 Catalog Page

Approvals

Drawings

Accessories

Model Number Description

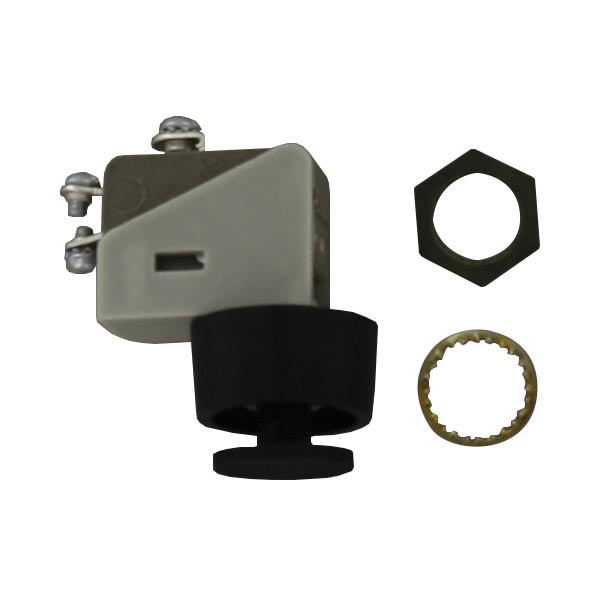

Manual reset switch. A-601 Manual reset switch.
Flat aluminum bracket for flush mounting Photohelic® & Capsuhelic® gages, 603A, 605, and 3000MR. A-298 Flat aluminum bracket for flush mounting Photohelic® & Capsuhelic® gages, 603A, 605, and 3000MR.

Model Chart

EXAMPLE A3000-00N 24VAC Series A3000-00N-24VAC Photohelic® Pressure Switch/Gage, range .05-0-0.2″ w.c., with 24VAC relay pack.
RANGE A3000-00N
A3000-00
A3000-0
A3001
A3002
A3003
A3004
A3005
A3006
A3008
A3010
A3015
A3020
A3025
A3030
A3040
A3050
A3060
A3080
A3100
A3150
A3300-0
A3301
A3302
A3304
A3310
A3320
A3330
A3000-00AV
A3000-0AV
A3001AV
A3002AV
A3010AV
A3201
A3202
A3203
A3204
A3205
A3210
A3215
A3220
A3230
A3000-5HG
A3000-10HG
A3000-15HG
A3000-20HG
A3000-25HG
A3000-30HG
A3000-40HG
A3000-50HG
A3000-60HG
A3000-6MM
A3000-10MM
A3000-20MM
A3000-25MM
A3000-50MM
A3000-80MM
A3000-100MM
A3000-150MM
A3000-200MM
A3000-250MM
A3000-300MM
A3000-500MM
A3000-5000MM
A3300-20MM
A3300-30MM
A3000-200MMHG
A3000-1CM
A3000-2CM
A3000-5CM
A3000-8CM
A3000-10CM
A3000-15CM
A3000-20CM
A3000-25CM
A3000-30CM
A3000-40CM
A3000-50CM
A3000-80CM
A3000-100CM
A3000-150CM
A3000-200CM
A3000-250CM
A3000-300CM
A3300-4CM
A3300-10CM
A3300-20CM
A3300-30CM
A3000-60PA
A3000-125PA
A3000-250PA
A3000-500PA
A3000-750PA
A3300-250PA
A3300-500PA
A3000-.5KPA
A3000-1KPA
A3000-1.5KPA
A3000-2KPA
A3000-3KPA
A3000-4KPA
A3000-5KPA
A3000-8KPA
A3000-10KPA
A3000-15KPA
A3000-20KPA
A3000-25KPA
A3000-30KPA
A3300-1KPA
A3300-2KPA
A3300-3KPA
A3000-5MBAR
A3000-25MBAR
  .05-0-.2″ w.c.
0-0.25″ w.c.
0-0.5″ w.c.
0-1″ w.c.
0-2″ w.c.
0-3″ w.c.
0-4″ w.c.
0-5″ w.c.
0-6″ w.c.
0-8″ w.c.
0-10″ w.c.
0-15″ w.c.
0-20″ w.c.
0-25″ w.c.
0-30″ w.c.
0-40″ w.c.
0-50″ w.c.
0-60″ w.c.
0-80″ w.c.
0-100″ w.c.
0-150″ w.c.
.25-0.25″ w.c.
.5-0-.5″ w.c.
1-0-1″ w.c.
2-0-2″ w.c.
5-0-5″ w.c.
10-0-10″ w.c.
15-0-15″ w.c.
0-.25″ w.c. & 300-2000 FPM AV
0-.5″ w.c. & 500-2800 FPM AV
0-1″ w.c. & 500-4000 FPM AV
0-2″ w.c. & 1000-5600 FPM AV
0-10″ w.c. & 2000-12500 FPM AV
0-1 psid
0-2 psid
0-3 psid
0-4 psid
0-5 psid
0-10 psid
0-15 psid
0-20 psid
0-30 psid
0-5″ Hg
0-10″ Hg
0-15″ Hg
0-20″ Hg
0-25″ Hg
0-30″ Hg
0-40″ Hg
0-50″ Hg
0-60″ Hg
0-6 mm w.c.
0-10 mm w.c.
0-20 mm w.c.
0-25 mm w.c.
0-50 mm w.c.
0-80 mm w.c.
0-100 mm w.c.
0-150 mm w.c.
0-200 mm w.c.
0-250 mm w.c.
0-300 mm w.c.
0-500 mm w.c.
0-5000 mm w.c.
10-0-10 mm w.c.
15-0-15 mm w.c.
0-200 mm Hg
0-1 cm w.c.
0-2 cm w.c.
0-5 cm w.c.
0-8 cm w.c.
0-10 cm w.c.
0-15 cm w.c.
0-20 cm w.c.
0-25 cm w.c.
0-30 cm w.c.
0-40 cm w.c.
0-50 cm w.c.
0-80 cm w.c.
0-100 cm w.c.
0-150 cm w.c.
0-200 cm w.c.
0-250 cm w.c.
0-300 cm w.c.
2-0-2″ cm w.c.
5-0-5 cm w.c.
10-0-10 cm w.c.
15-0-15 cm w.c.
0-60 Pa
0-125 Pa
0-250 Pa
0-500 Pa
0-750 Pa
125-0-125 Pa
250-0-250 Pa
0-0.5 kPa
0-1 kPa
0-1.5 kPa
0-2 kPa
0-3 kPa
0-4 kPa
0-5 kPa
0-8 kPa
0-10 kPa
0-15 kPa
0-20 kPa
0-25 kPa
0-30 kPa
0.5-0-0.5 kPa
1-0-1 kPa
1.5-0-1.5 kPa
0-5 mbar
0-25 mbar
OPTIONS   24VAC
240VAC
AT
COO
DEED
EDED
EDDE
ED
EXPL
G
HC
HL
HP
LH
LL
OLS
LT
M
MP
NIST
R
RMR
RMR1
RMR2
RMR3
RMR10
RMR15
RMR20
RMR25
RMR30
RMR40
RMR50
RMR60
RMR70
RMR80
RMR90
RMR100
SRH
SRL
ST
TA
TAMP
WP
Y
24 VAC Relay Pack
220/240 VAC Relay Pack
Aluminum Tag
Certificate of Origin
Energizing (set point low: de-energizing/energizing; set point high: energizing/de-energizing)
Energizing (set point low: energizing/de-energizing; set point high: energizing/de-energizing)
Energizing (set point low: energizing/de-energizing; set point high: de-energizing/energizing)
Energizing (set point: energizing/de-energizing)
Explosion-proof Housing with Breather & Drain
Green Scale Overlay
Horizontal Calibration (90° face up)
Latching Option (high/low)
High Pressure
Latching Option (low/high)
Latching Option (low/low)
Less Relay
Low Temperature
Mirror Scale Overlay
Medium Pressure
NIST Certificate of Calibration
Red Scale Overlay
Remote Mounted Relay Std. 5 Ft.
Remote Mounted Relay 1 Ft.
Remote Mounted Relay 2 Ft.
Remote Mounted Relay 3 Ft.
Remote Mounted Relay 10 Ft.
Remote Mounted Relay 15 Ft.
Remote Mounted Relay 20 Ft.
Remote Mounted Relay 25 Ft.
Remote Mounted Relay 30 Ft.
Remote Mounted Relay 40 Ft.
Remote Mounted Relay 50 Ft.
Remote Mounted Relay 60 Ft.
Remote Mounted Relay 70 Ft.
Remote Mounted Relay 80 Ft.
Remote Mounted Relay 90 Ft.
Remote Mounted Relay 100 Ft.
Single Right Hi Latching
Single Right Lo Latching
Stainless Steel Tag
Tilt Angle from Vertical in Degrees (-90 to 90)
Tamperproof Knobs
Weatherproof Housing
Yellow Scale Overlay

Apps

Air Velocity and Flow Calculator
