Dwyer Series 673 Pressure Transmitter

$ 199.00–$ 301.00

SKU: N/A Categories: Pressure, Single Pressure

Description
Models
Specifications
Features
Literature
Approvals
Drawings
Accessories

Product Description

±0.25% Full Span Accuracy, 4-20 mA Signal, Ranges to 1000 psi

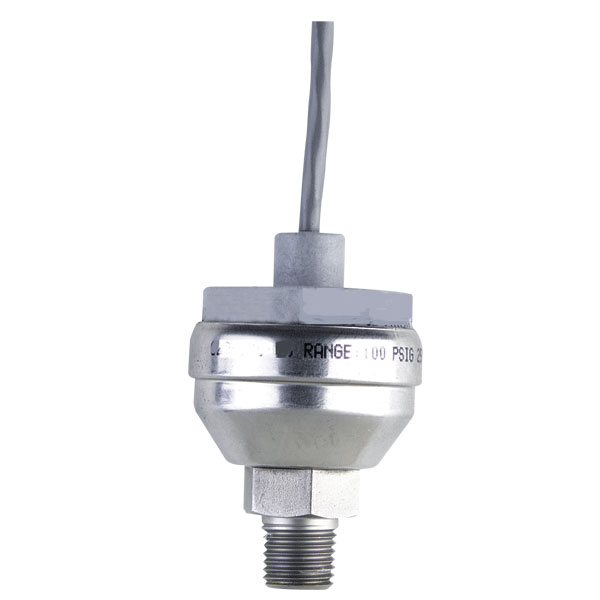

The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.

Product Applications

OEM
Hydraulic systems
HVAC equipment
Industrial engines
Compressors

Models

Model	Description
673-1	Pressure transmitter, range 0-1 psi.
673-10	Pressure transmitter, range 0-1000 psi.
673-10C	Pressure transmitter, range 0-1000 psi.
673-13	Pressure transmitter, range -14.7 to 30 psig.
673-13C	Pressure transmitter, range -14.7 to 30 psig.
673-14	Pressure transmitter, range -14.7 to 100 psig.
673-14C	Pressure transmitter, range -14.7 to 100 psig.
673-1C	Pressure transmitter, range 0-1 psi.
673-2	Pressure transmitter, range 0-2 psi.
673-2C	Pressure transmitter, range 0-2 psi.
673-3	Pressure transmitter, range 0-5 psi.
673-3C	Pressure transmitter, range 0-5 psi.
673-4	Pressure transmitter, range 0-10 psi.
673-4C	Pressure transmitter, range 0-10 psi.
673-5	Pressure transmitter, range 0-25 psi.
673-5C	Pressure transmitter, range 0-25 psi.
673-6	Pressure transmitter, range 0-50 psi.
673-6C	Pressure transmitter, range 0-50 psi.
673-7	Pressure transmitter, range 0-100 psi.
673-7C	Pressure transmitter, range 0-100 psi.
673-8	Pressure transmitter, range 0-200 psi.
673-8C	Pressure transmitter, range 0-200 psi.
673-9	Pressure transmitter, range 0-500 psi.
673-9C	Pressure transmitter, range 0-500 psi.

Specifications

Service:: Non-combustible liquid, gas, or vapor.
Wetted Materials:: 17-4 PH Stainless Steel.
Accuracy:: RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
Temperature Limits:: -40 to 185°F (-40 to 85°C).
Compensated Temperature Range:: -40 to 176°F (-40 to 80°C).
Pressure Limits:: 2X full scale range.
Thermal Effects:: Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
Stability:: 0.5% FS/year.
Response Time:: 5 ms.
Power Requirements:: 9-30 VDC.
Output:: 4-20 mA**, 2-wire.
Zero and Span Adjustment:: Fixed.
Loop Resistance:: 0 to 800 Ω.
Shock:: 200 g.
Vibration:: 20 g.

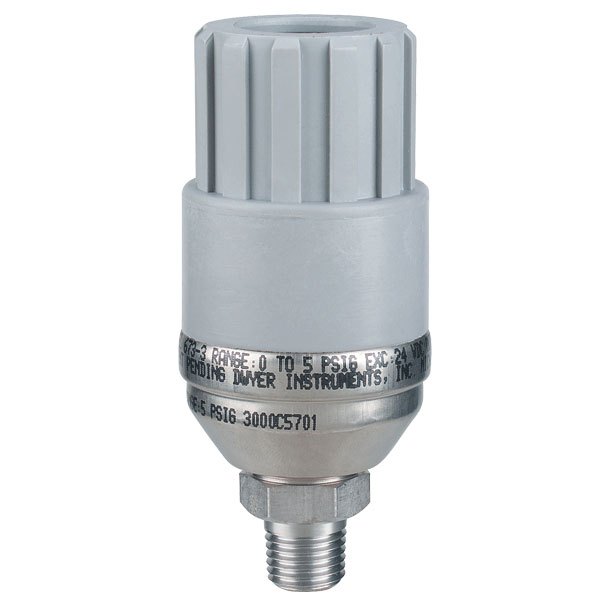

Electrical Connections:: 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4″-18 (22.3 mm) knockout.
Enclosure:: Stainless Steel and Valox.
Weight:: 2.3 oz (65 g).
Agency Approvals:: CE.
: *RSS of non-linearity, hysteresis, and non-repeatability.
**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
