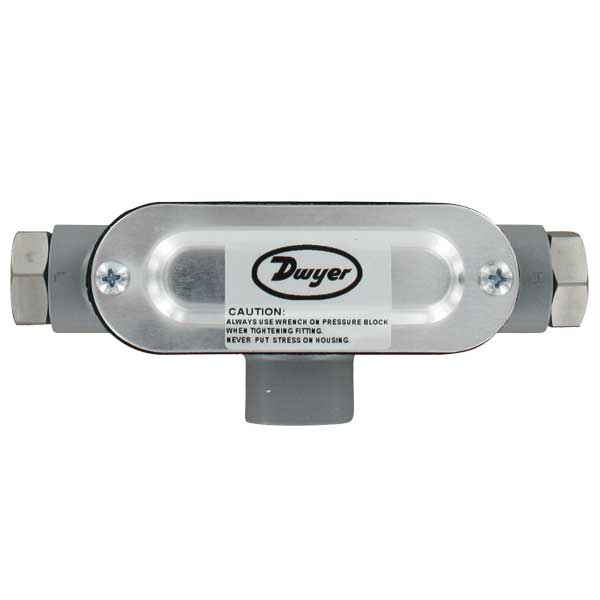

Dwyer Series 629 Wet/Wet Differential Pressure Transmitter

$ 285.00

SKU: N/A Categories: Differential Pressure, Pressure

Description
Models
Specifications
Options
Literature
Approvals
Drawings
Accessories
Model Chart
FAQ

Product Description

0.5% Accuracy, NEMA 4X Enclosure

The Series 629 Differential Pressure Transmitter monitors differential pressure of air and compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes into a standard 4-20 mA output signal for two wire circuits. Small internal volume and minimum moving parts result in exceptional response and reliability. Terminal block zero and span adjustments are easily accessed under the top cover. The Series 629
Differential Pressure Transmitter is designed to meet NEMA 4X (IP66) construction.

Product Applications

Monitor Differential Pressure Across:
Flow Elements
Heat Exchangers
Filters
Pumps
Coils
Chiller

Models

Model	Description
629-02-CH-P2-E5-S1	Wet/wet differential pressure transmitter, range 10 psid, working pressure 20 psi, over pressure 100 psi.
629-02-CH-P2-E5-S1-3V	Wet/wet differential pressure transmitter with 3-way valve package, range 10 psid, working pressure 50 psi, over pressure 250 psi.
629-02-CH-P2-E5-S5	Wet/wet differential pressure transmitter, range 10 psid, conduit housing, 1/4″ NPT female process connections, 0-10 V output.
629-02-CH-P2-E5-S5-3V	Wet/wet differential pressure transmitter, range 10 psid, conduit housing, 1/4″ NPT female process connections, 0-10 V output, with 3-way valve manifold.
629-03-CH-P2-E5-S1	Wet/wet differential pressure transmitter, range 25 psid, working pressure 50 psi, over pressure 250 psi.
629-03-CH-P2-E5-S1-3V	Wet/wet differential pressure transmitter with 3-way valve package, range 25 psid, working pressure 50 psi, over pressure 250 psi.
629-03-CH-P2-E5-S5	Wet/wet differential pressure transmitter, range 25 psid, conduit housing, 1/4″ NPT female process connections, 0-10 V output.
629-03-CH-P2-E5-S5-3V	Wet/wet differential pressure transmitter, range 25 psid, conduit housing, 1/4″ NPT female process connections, 0-10 V output, with 3-way valve manifold.
629-04-CH-P2-E5-S1	Wet/wet differential pressure transmitter, range 50 psid, working pressure 100 psi, over pressure 250 psi.
629-04-CH-P2-E5-S1-3V	Wet/wet differential pressure transmitter with 3-way valve package, range 50 psid, working pressure 100 psi, over pressure 250 psi.
629-04-CH-P2-E5-S5	Wet/wet differential pressure transmitter, range 50 psid, conduit housing, 1/4″ NPT female process connections, 0-10 V output.
629-04-CH-P2-E5-S5-3V	Wet/wet differential pressure transmitter, range 50 psid, conduit housing, 1/4″ NPT female process connections, 0-10 V output, with 3-way valve manifold.
629-05-CH-P2-E5-S1	Wet/wet differential pressure transmitter, range 100 psid, working pressure 200 psi, over pressure 500 psi.
629-05-CH-P2-E5-S1-3V	Wet/wet differential pressure transmitter with 3-way valve package, range 100 psid, working pressure 200 psi, over pressure 500 psi.
629-05-CH-P2-E5-S5	Wet/wet differential pressure transmitter, range 100 psid, conduit housing, 1/4″ NPT female process connections, 0-10 V output.
629-05-CH-P2-E5-S5-3V	Wet/wet differential pressure transmitter, range 100 psid, conduit housing, 1/4″ NPT female process connections, 0-10 V output, with 3-way valve manifold.

Specifications

Service:: Compatible gases and liquids.
Wetted Materials:: Without valve: 316, 316L SS. Additional wetted parts with 3-way valve option: Buna-N, silicone grease, PTFE, brass 360, copper, reinforced acetal copolymer.
Accuracy:: ±0.5% F.S. (includes linearity, hysteresis, and repeatability).
Temperature Limits:: 0 to 200°F (-18 to 93°C).
Compensated Temperature Limits:: 0 to 175°F (-18 to 79°C).
Pressure Limits:: See Ordering page.
Thermal Effect:: 0.02%/°F (0.036%/°C) includes zero and span.
Power Requirements:: 13 to 30 VDC.
Output Signal:: 4 to 20 mA. Optional 0-5 or 0-10 VDC.
Response Time:: 50 msec.
Loop Resistance:: 0-1300 ohms maximum for current output. For voltage outputs, minimum load resistance: 2000 ohms.
Electrical Connections:: Terminal block; 1/2″ female NPT conduit.
Process Connection:: 1/4″ female NPT.
Enclosure Rating:: Designed to meet NEMA 4X (IP66).
Mounting Orientation:: Mount in any position.
Weight:: 10.1 oz (286 g).
Agency Approvals:: CE.
NOTE:: Pressures exceeding the working pressure limit may cause a calibration shift of up to ±3% of full scale.

Options

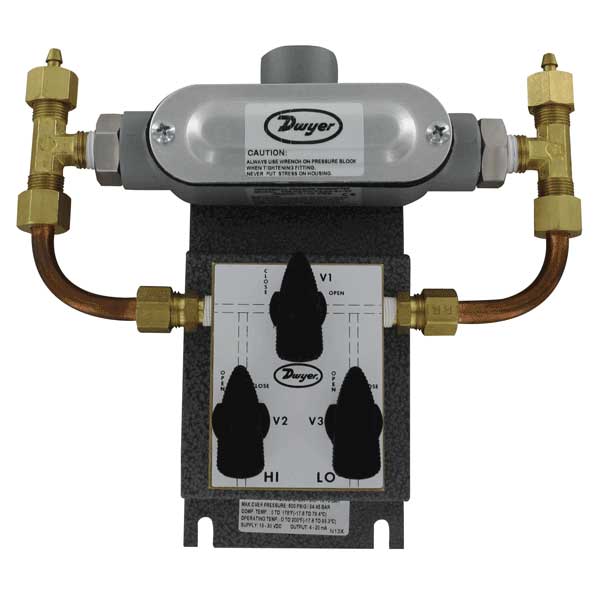

-3V 3 Way Valve Package for Chillers.

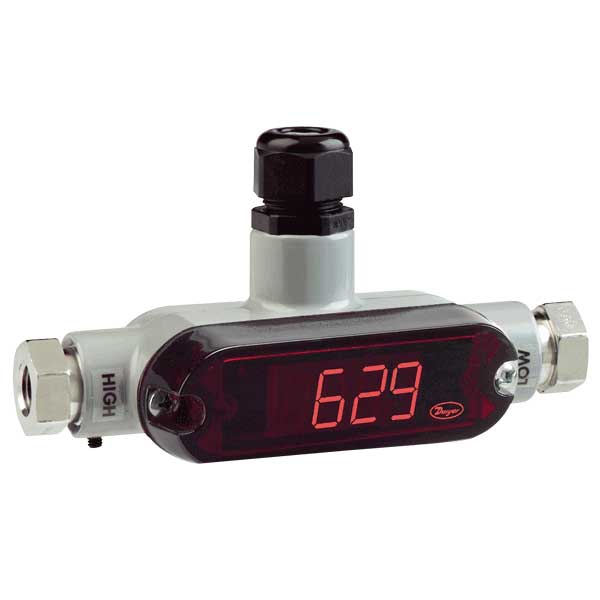

-LED 4.5 Digit LED Display.

Literature

Manuals

Instruction Manual

Catalog Pages

Series 629 Catalog Page

Approvals

CE Approval

Drawings

Series 629 Catalog Page
629 .pdf
629-3V .pdf

Accessories

	Model Number	Description
	641-LED	Field-upgradeable LED.

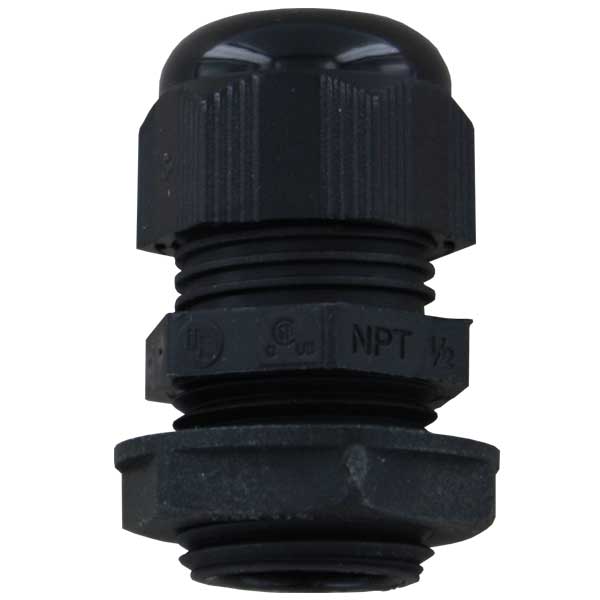

	A-155	Cable gland with 1/2″ male NPT fitting.
	BBV-1B	Mini 3-valve block manifold
	A-228	Stainless steel flex hose, 12″ (30.48 cm) long, 1/8″ male NPT connections.
	A-131A	3-Way manifold & bracket for pressure transmitters.

Model Chart

EXAMPLE	629	06	CH	P1	E1	S1	AT	Series 626-06-CH-P1-E1-S1-AT Wet/Wet Differential Pressure Transmitter, range 0-150 psid, conduit housing, NEMA 4X (IP66), 1/4″ male NPT, 3 ft. cable, 4-20 mA output, with aluminum tag.
SERIES	629							Wet/Wet Differential Pressure Transmitter
RANGE		02 03 10 04 05 06 07 08 09 91						0-10 psid 0-25 psid 0-30 psid 0-50 psid 0-100 psid 0-150 psid 0-200 psid 0-300 psid 0-500 psid 0-6 Bar
HOUSING			CH					Conduit Housing, NEMA 4X (IP66)
FITTINGS				P1 P2 P3				1/4″ Male NPT 1/4″ Female NPT BSPT ISO 228 R 1/4″
ELECTRICAL CONNECTIONS					E1 E2 E3 E5			3 Ft. Cable (GH, CH) 6 Ft. Cable (GH, CH) 9 Ft. Cable (GH, CH) Conduit Connection (CH, EH)
ELECTRICAL OUTPUT						S1 S2 S3 S4 S5 S6		4-20 mA 1-5 Volts 2-10 Volts 0-5 Volts 0-10 Volts 1-6 Volts
OPTIONS							AT LED NIST PRESET 3V	Aluminum Tag LED Indication NIST Certification Preset Transmitter 3-Way Valve

FAQ

Question

We have a defective 629-04-CH-P2-E5-S1-3V DP sensor. The technician only wants to replace “just the sensor”, not the entire manifold assembly. Can you give me the part number for this sensor?

Answer

Here is the part number you could use to replace just the sensor: 629-04-CH-P2-E5-S1. The “-3V” at the end of the model number is the valve manifold option. For any unit just order the model number before the “-3V” as a replacement pressure transmitter.

Related

Series 629

Question

I am using a differential pressure transmitter model 629-02-CH-P2-E5-S1-LED to measure differential pressure of water. How do I convert the 4-20 mA signal to the differential pressure reading?

Answer

The 4-20 mA output from the 629 is linear over the range, which in this case is 0-10 PSID. Therefore, a 4 mA output will coincide with a differential pressure of 0 PSID, and a 20 mA output will coincide with a differential pressure of 10 PSID with a linear relationship between those two points. With that information, you should simply be able to scale your receiver accordingly.
