Dwyer Series 628CR Pressure Transmitter

$ 64.00

Range

Housing

Process Connection

Electrical Connection

Signal Output

Options

Categories: ,

Product Description

OEM Pressure Transmitter, NEMA 4X

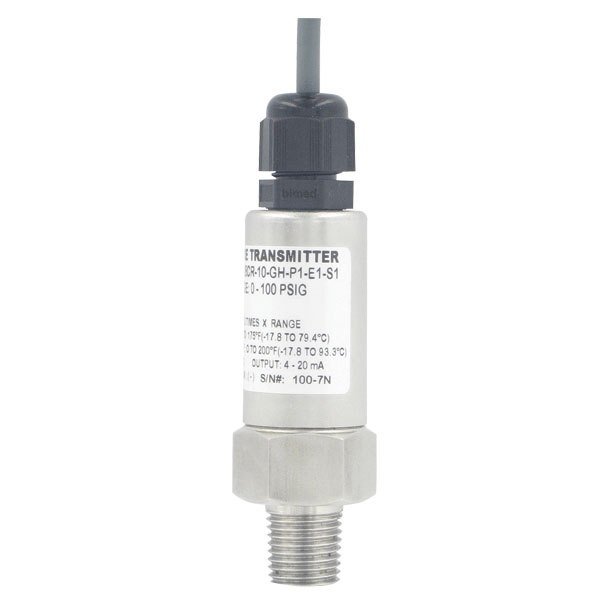

Accurate to ±1% of full scale, The Series 628CR Pressure Transmitter, contains a low cost ceramic sensor housed in a compact, rugged, NEMA 4X stainless steel body. Ideal for the budget conscious OEM’s that require high levels of performance, reliability and stability at an unbeatable price. The 628CR housing is small and lightweight for optimum compatibility with OEM systems. The design allows for a variety of pressure ranges from 30 to 500 psi and optional electrical connections allowing you to select the right transmitter for your application.

Product Applications

  • Pump Monitoring
  • Compressors
  • Irrigation Equipment
  • HVAC
  • Pneumatic Systems

Models

Model Description
628CR-08-GH-P1-E1-S1 Ceramic transmitter, 30 psi, 1/4″ NPTM, 3′ cable, 4-20 mA.
628CR-08-GH-P1-E4-S1 Ceramic transmitter, 30 psi, 1/4″ NPTM, DIN-C, 4-20 mA.
628CR-09-GH-P1-E1-S1 Ceramic transmitter, 50 psi, 1/4″ NPTM, 3′ cable, 4-20 mA.
628CR-09-GH-P1-E4-S1 Ceramic transmitter, 50 psi, 1/4″ NPTM, DIN-C, 4-20 mA.
628CR-10-GH-P1-E1-S1 Ceramic transmitter, 100 psi, 1/4″ NPTM, 3′ cable, 4-20 mA.
628CR-10-GH-P1-E4-S1 Ceramic transmitter, 100 psi, 1/4″ NPTM, DIN-C, 4-20 mA.
628CR-12-GH-P1-E1-S1 Ceramic transmitter, 200 psi, 1/4″ NPTM, 3′ cable, 4-20 mA.
628CR-12-GH-P1-E4-S1 Ceramic transmitter, 200 psi, 1/4″ NPTM, DIN-C, 4-20 mA.
628CR-13-GH-P1-E1-S1 Ceramic transmitter, 300 psi, 1/4″ NPTM, 3′ cable, 4-20 mA.
628CR-13-GH-P1-E4-S1 Ceramic transmitter, 300 psi, 1/4″ NPTM, DIN-C, 4-20 mA.
628CR-14-GH-P1-E1-S1 Ceramic transmitter, 500 psi, 1/4″ NPTM, 3′ cable, 4-20 mA.
628CR-14-GH-P1-E4-S1 Ceramic transmitter, 500 psi, 1/4″ NPTM, DIN-C, 4-20 mA.

Specifications

Service:
Compatible gases and liquids.
Wetted Materials:
Ceramic, fluoroelastomer, 316L SS.
Accuracy:
±1.0% FS (includes linearity, hysteresis and repeatability).
Stability:
±0.25% FS/year.
Temperature Limits:
0 to 185°F (-18 to 85°C).
Compensated Temperature Range:
0 to 175°F (-18 to 79°C).
Pressure Limit:
Max. Pressure: 2x range; Burst Pressure: 3x range.
Thermal Effect:
±0.04% FS/°F.
Power Requirements:
9 to 30 VDC.
Output Signal:
4 to 20 mA.
Response Time:
3 ms typ.
Loop Resistance:
0-1200 Ohm max.
Current Consumption:
40 mA max.
Electrical Connections:
Cable or DIN connector.
Process Connection:
1/4″ male NPT or 1/4″ male BSPT.
Enclosure Rating:
NEMA 4X (IP65).
Mounting Orientation:
Mount in any position.
Weight:
4.0 oz.
Agency Approvals:
CE.

Literature

Manuals

Service Manual

Catalog Pages

Series 628CR Catalog Page

Approvals

CE Approval

Drawings

Model Chart

EXAMPLE 628CR 08 GH P1 E1 S1 AT Series 628CR-08-GH-P1-E1-S1-AT Pressure Transmitter, range 0-30 psig, general purpose enclosure, 1/4″ male NPT, 3 ft. cable, 4-20 mA output, with aluminum tag.
SERIES 628CR             Pressure Transmitter
RANGE   08
09
10
12
13
14
71
90
91
75
92
93
81
          0-30 psig
0-50 psig
0-100 psig
0-200 psig
0-300 psig
0-500 psig
0-2.5 bar
0-4 bar
0-6 bar
0-10 bar
0-16 bar
0-25 bar
0-40 bar
HOUSING     GH         General Purpose
FITTINGS       P1
P2
P3
P4
      1/4″ Male NPT
1/4″ Female NPT
1/4″ Male BSPT
1/4″ Female BSPT
CABLES &
CONNECTORS
        E1
E2
E3
E4
    3 Ft. Cable
6 Ft. Cable
9 Ft. Cable
Heirshman DIN EN 175801-803-C
ELECTRICAL
OUTPUT
          S1   4-20 mA, 2-wire
OPTIONS             AT
NIST
Aluminum Tag
NIST Certification
