Dwyer Series 3200G Explosion-proof Pressure Transmitter

$ 815.00–$ 890.00

Clear selection

Range

Approval

Process Connection

Electrical Connection

Diaphragm Seal Type

Mounting Flange

Mounting Flange Rating

Extension Length

Diaphragm Material

Fill Fluid

Capillary Length

Options

Accessories

SKU: N/A Categories: ,

Product Description

HART® Communication, Push Button Configuration, Rangeability (100:1)

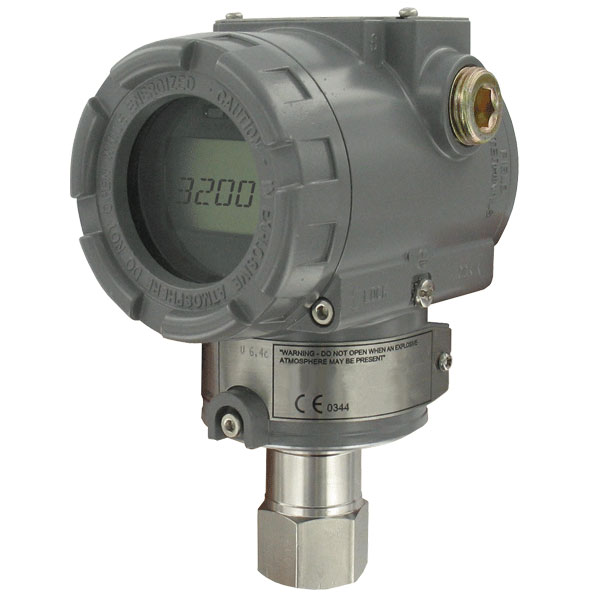

The Mercoid® Series 3200G Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3200G is capable of being configured with the zero and span buttons, a field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3200G is FM approved for use in hazardous (Classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.

Models

Model Description
3200G-1-FM-1-1 Smart pressure transmitter, range -14.5 to 21 psi.
3200G-1-FM-1-1-LCD Smart pressure transmitter, range -14.5 to 21 psi with LCD display.
3200G-2-FM-1-1 Smart pressure transmitter, range -14.5 to 217 psi.
3200G-2-FM-1-1-LCD Smart pressure transmitter, range -14.5 to 217 psi with LCD display.
3200G-3-FM-1-1 Smart pressure transmitter, range 0 to 725 psi.
3200G-3-FM-1-1-LCD Smart pressure transmitter, range 0 to 725 psi with LCD display.
3200G-4-FM-1-1 Smart pressure transmitter, range 0 to 3600 psi.
3200G-4-FM-1-1-LCD Smart pressure transmitter, range 0 to 3600 psi with LCD display.
3200G-5-FM-1-1 Smart pressure transmitter, range 0 to 8500 psi.
3200G-5-FM-1-1-LCD Smart pressure transmitter, range 0 to 8500 psi with LCD display.

Specifications

Service:
Compatible gases, steam, liquids or vapors.
Wetted Materials:
316L SS.
Accuracy:
±0.075% FS (@ 20°C).
Rangeablity:
100:1 turn down.
Stability:
±0.125% FSO/yr.
Temperature Limits:
Process: -40 to 248°F (-40 to 120°C); Ambient: Without LCD -40 to 185°F (-40 to 85°C), With LCD -22 to 176°F (-30 to 80°C).
Thermal Effect:
±0.125% span/32°C.
Power Requirements:
11.9 to 45 VDC.
Output Signal:
4 to 20 mA / HART® Communication.
Response Time:
0.12 seconds.
Damping Time:
0.25 to 60 seconds.
Loop Resistance:
Operation: 0 to 1500 Ohm; HART® Communication: 250 to 500 Ohm.
Electrical Connection:
Two 1/2″ female NPT conduit, screw terminal.
Process Connections:
1/2″ female NPT.
Display:
Optional: 5 digit LCD.
Enclosure Rating:
NEMA 4X (IP66) and explosion-proof for Class I, Div I Groups A, B, C and D.
Weight:
5.5 lb (2.5 kg).
Agency Approvals:
ATEX, CE, FM.

Features

  • Completely configurable using zero/span buttons (no calibrator required)
  • Rangeablity (100:1)
  • High accuracy (±0.075%)
  • Automatic ambient temperature compensation
  • Fail-mode process function

Literature

Manuals

Instruction Manual

Catalog Pages

Series 3200G Catalog Page

Approvals

Drawings

Accessories

Model Number Description

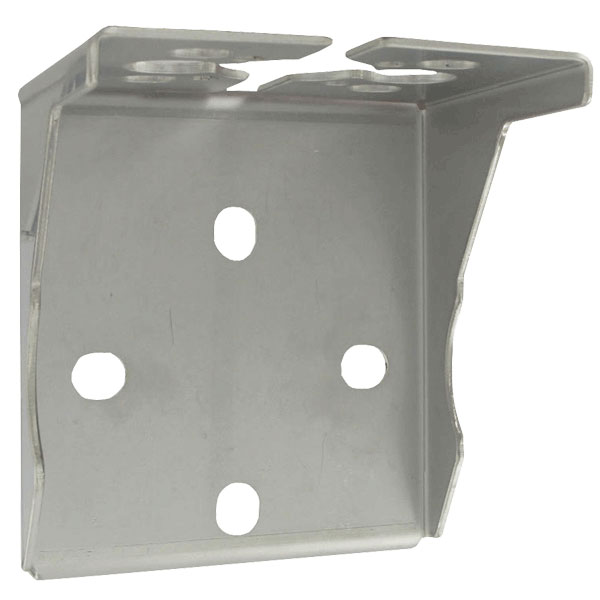

316SS angle bracket with bolts. A-630 316SS angle bracket with bolts.

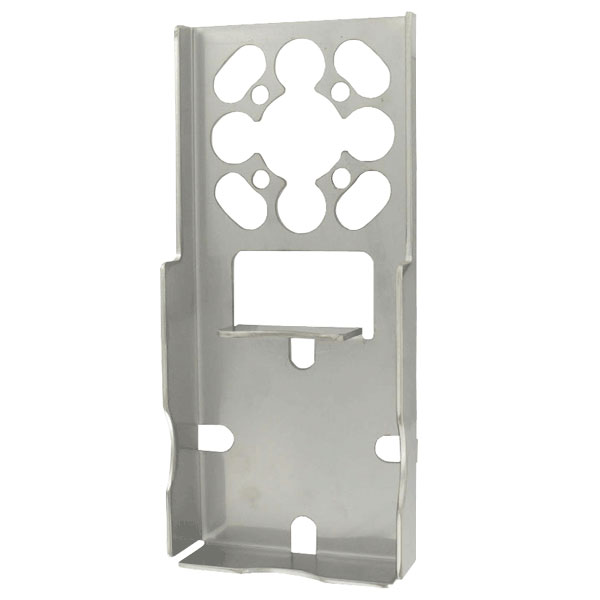

316SS flat bracket with bolts. A-631 316SS flat bracket with bolts.
HART® Communicator Software DevCom2000 HART® Communicator Software

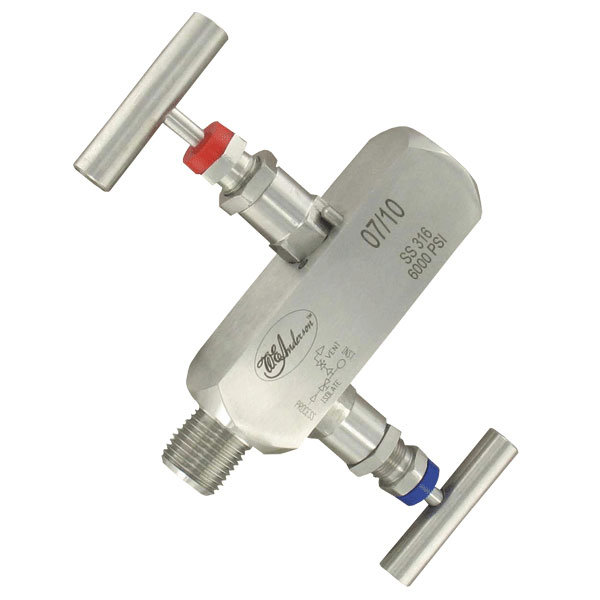

2-valve block manifold BBV-0N 2-valve block manifold

Model Chart

EXAMPLE 3200G 1 FM 1 1 LED S2 A1 00 H 2 X Options Series 3200G-1-FM-1-1-LEDS2A100H2-X, Explosion-Proof Pressure Transmitter, range -14.5-21 psig, FM approval, 1/2″ female npt, extended diaphragm seal direct mount, 2″ 316L stainless steel mtg flange, Ansi Class 150 rating, Hastelloy C-276 diaphragm, DC Silicon, capillary length
SERIES 3200G                         Explosion-Proof Pressure Transmitter
RANGE   1
2
3
4
5		                       -14.5-21 psig (factory set 0 to 21 psig)
-14.5-217 psig (factory set 0 to 217 psig)
0-725 psig
0-3600 psig
0-8500 psig
APPROVAL RATING     FM
ATEX
WP
 		                   FM Approval
ATEX Approved
General Purpose NEMA 4X/IP66
PROCESS CONNECTIONS       1
3		                   1/2″ npt female
diaphragm seal
ELECTRICAL CONNECTIONS         1
2		                 1/2″ npt female
G (metric)
DIAPHRAGM SEAL TYPE           LED
LES
LFD
LFS		               Extended Diaphragm Seal direct mount
Extended Diaphragm Seal capillary type
Flush Diaphragm Seal direct mount
Flush Diaphragm Seal capillary type
MOUNTING FLANGE             S2
S3		             2″ (50mm) 316L Stainless Steel
3″ (80mm) 316L Stainless Steel
MOUNTING FLANGE RATING               A1
A2
D1
D2
J1
J2		           ANSI Class 150
ANSI Class 300
DIN pn 10/16
DIN pn 25/40
JIS 10k
JIS 20k
EXTENSION LENGTH                 00
05
10
15		         no extension standard option for flush mount
2″ (50mm)
4″ (100mm)
6″ (150mm)
WETTED PARTS                   H
P
S
T		       Hastelloy C-276 Diaphragm
PTFE and 316L Stainless Steel Diaphragm
316L Stainless Steel Diaphragm
Tantallum Diaphragm
FILL FLUID                     2     D.C. Silicon 200 (-40-400° F)
CAPILLARY LENGTH                       X   Capillary length 0-20′ (whole numbers only)
OPTIONS                         LCD
SSH
CC
NIST		 5 Digit LCD
316 Stainless Steel Housing
Custom Calibration
NIST Certificate
