Product Description

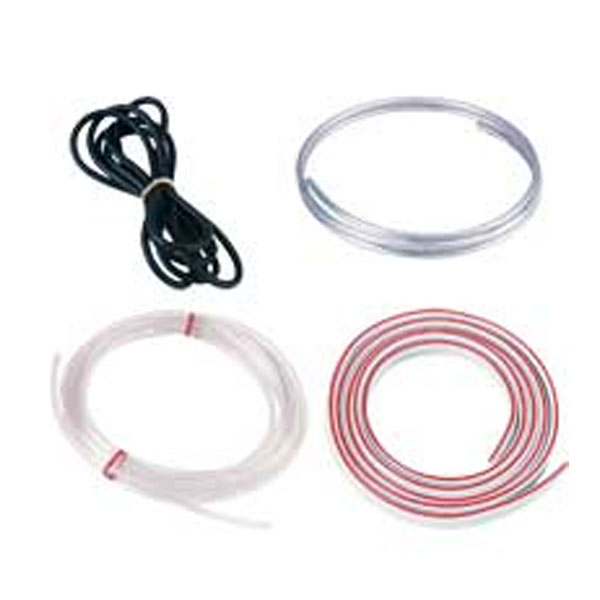

Clear PVC tubing is easily inspected and is therefore best for test applications where a possibility of fluid entering the tubing exists.
Rubber tubing has less tendency to kink in storage and occupies less space, thus is best for portable work.
Aluminum tubing is recommended for permanent installations.
Flexible double column tubing is used with Mark II Manometers and the Wind Speed Indicator.
Norprene® tubing is useful in a wide range of temperatures from -75 to 275°F (-60 to 135°C)and will not weaken after long term exposure to heat and ozone.
Flexible colored vinyl tubing is quickly distinguishable in applications where more than one line is required aiding installation.
Black nylon tubing is recommended for high temperature and pressure applications.
Black plenum fire retardent polyethylene tubing meets NFPA standard 90A for installation in air-conditioning and ventilating plenum spaces; also used in building automation systems.

Please contact us (call +65-6844 0298 OR email us at sales@processpneumatics.com) if the models that you are looking is not available here

Models

Model	Description

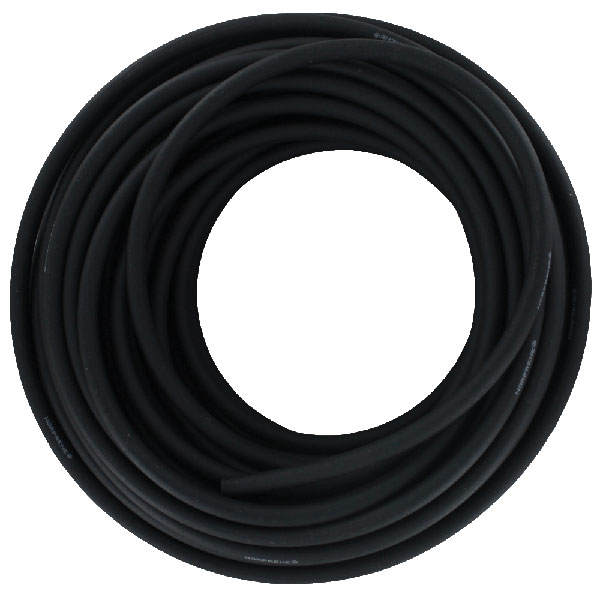

A-200-1	Norprene® tubing, 3/16″ ID x 5/16″ OD, 13 psi maximum pressure @ 73°F, 50′ length.
A-200-2	Norprene® tubing, 1/4″ ID x 3/8″ OD, 10 psi maximum pressure @ 73°F, 50′ length.
A-201	Rubber latex tubing has less tendency to kink in storage and occupies less space, thus is best for portable work. 3/16″ ID, 9′ length.
A-202	Rubber latex tubing. 3/16″ ID, lengths to 50′.
A-203	Clear PVC tubing, 1/8″ ID x 1/4″ OD, lengths to 100′.
A-204-A	Opaque red vinyl tubing, 3/16″ ID X 5/16″ OD, available in lengths up to 500′, per ft.
A-204-B	Opaque blue vinyl tubing, 3/16″ ID X 5/16″ OD, available in lengths up to 500′, per ft.
A-204-C	Opaque white vinyl tubing, 3/16″ ID X 5/16″ OD, available in lengths up to 500′, per ft.
A-204-D	Opaque black vinyl tubing, 3/16″ ID X 5/16″ OD, available in lengths up to 500′, per ft.

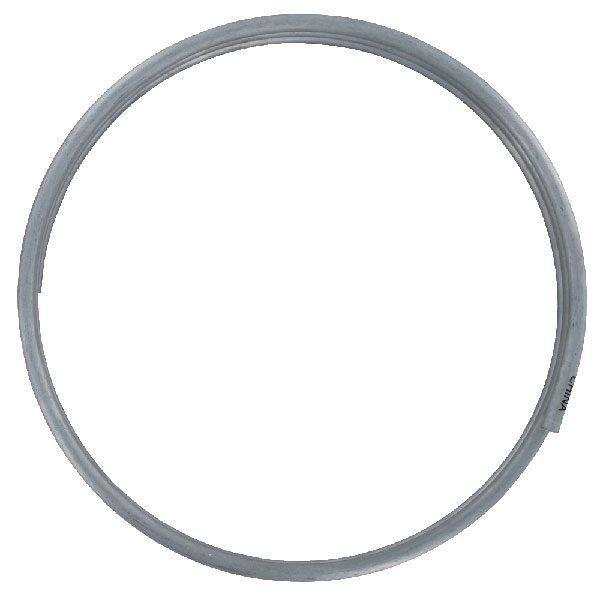

A-210	Aluminum tubing is recommended for permanent installations. 1/4″ OD, 5′ length, 500 psi maximum pressure @ 200°F.
A-211	Aluminum tubing, 1/4″ OD, 50 ft length, 500 psi maximum pressure @ 200°F.
A-220	Clear flexible vinyl tubing is easily inspected, and is therefore best for test applications where a possibility of fluid entering the tubing exists. 3/16″ ID x 5/16″ OD, lengths to 500′; 45 psi maximum pressure @ 73°F.
A-221	Clear flexible vinyl tubing is easily inspected, and is therefore best for test applications where a possibility of fluid entering the tubing exists. 1/8″ ID x 3/16″ OD, lengths to 500′; 40 psi maximum pressure @ 165°F.
A-222	Clear flexible vinyl tubing is easily inspected, and is therefore best for test applications where a possibility of fluid entering the tubing exists. .240″ ID x .375″ OD, lengths to 500′; 35 psi maximum pressure @ 73°F.

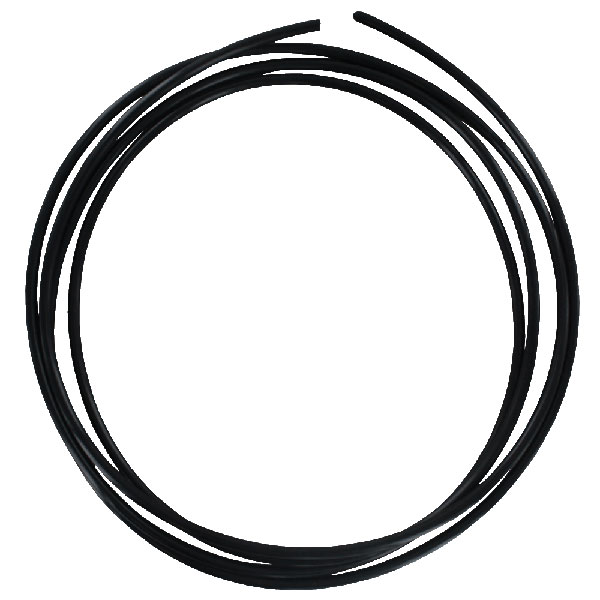

A-223	Black polyethylene tubing offers long life, great stability and resistance to corrosion. 1/8″ ID x 1/4″ OD, 10′ length; 200 psi maximum @ 140°F.
A-223P-1	Black plenum fire retardent polyethylene tubing, .17″ ID X 1/4″ OD, available in lengths up to 500′, per ft.
A-223P-2	Black plenum fire retardent polyethylene tubing, 1/4″ ID X 3/8″ OD, available in lengths up to 500′, per ft.
A-224-A	Black nylon tubing, 0.23″ ID x 5/16″ OD; 362 psi (2500 kPa) working pressure, per ft.
A-224-B	Black nylon tubing, 0.256″ ID x 3/8″ OD, 406 psi (2800 kPa) working pressure, per ft.
A-225	Flexible double column plastic tubing, lt. grey, with red color code stripe, 1/8″ ID, lengths to 750 ft, per ft.

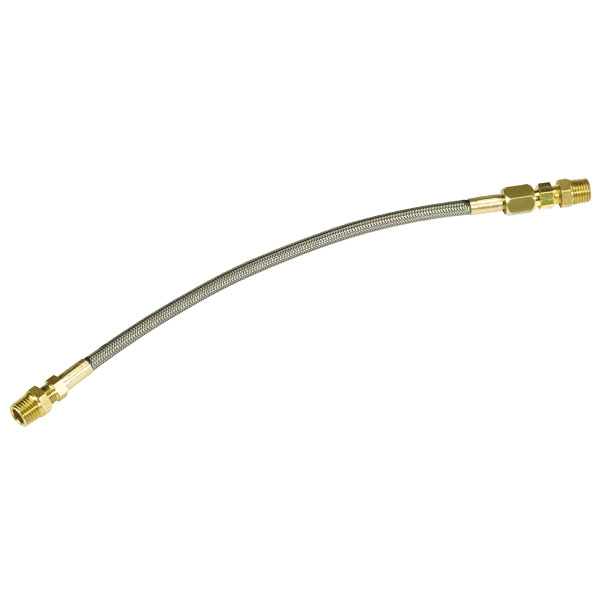

A-228	Stainless steel flex hose, 12″ (30.48 cm) long, 1/8″ male NPT connections.
